Heated Glass Element: Service and Repair

Grid Lines and Terminal Repair

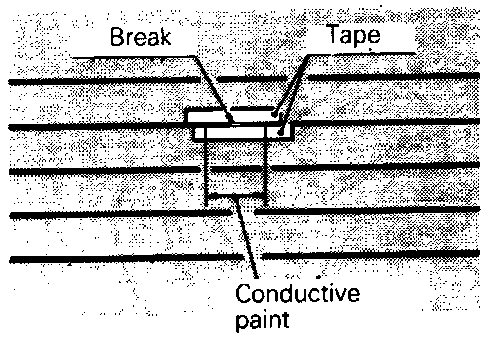

Printed-Heater Line Repair:

REQUIRED MATERIALS
- Thinner
- Tape
- Conductive paint
- Lead-free gasoline
- Fine brush

1. Clean disconnected area with lead-free gasoline. Tape along both sides of heater element.
2. Mix conductive paint thoroughly. Thin the required amount of paint in a separate container with a small amount of thinner and paint break three times at 15 minutes intervals.
3. Remove tape and leave for a while before use (circuit complete).
4. Finish exterior with a knife after 24 hours (completely dry).

CAUTION: Clean glass with a soft cloth (dry or damp) along defogger heater element.
