Wiper and Washer Systems: Service and Repair
CAUTION: Before removal of air bag module and clock spring, refer to SRS Service Precautions, Air Bag Module and Clock Spring.

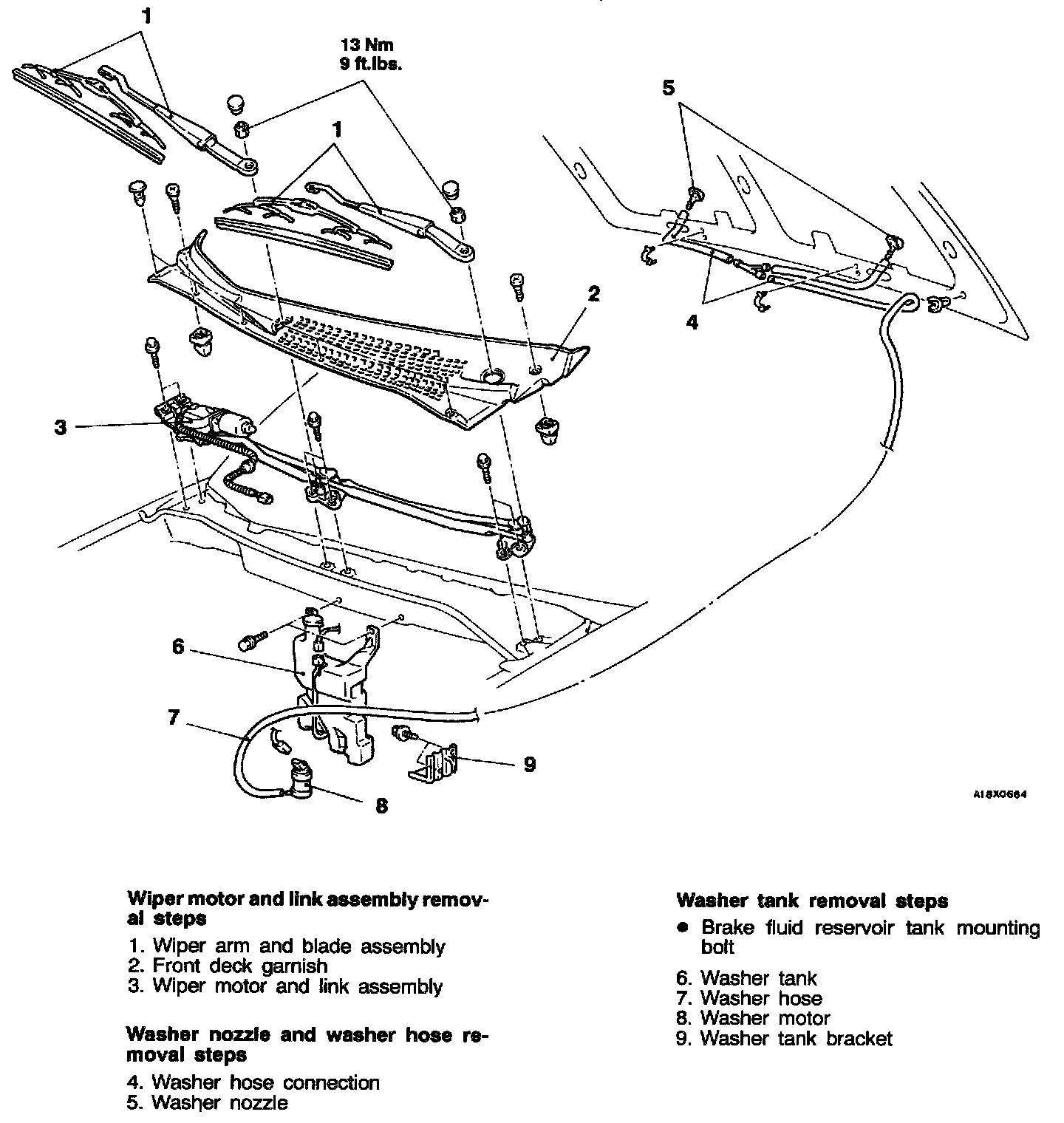

REMOVAL
To remove follow the steps listed in the image.
INSTALLATION SERVICE POINT

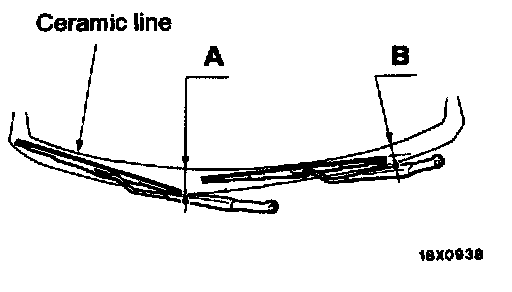

Wiper Arm And Blade Assembly Installation
Adjust the wiper and blade assembly so that the clearances between the wiper blade edges and the ceramic line are at the standard value.
Standard value
(A): 47 +/- 5 mm (1.85 +/- .20 in.)
(B): 10 +/- 5 mm (.39 +/- .20 in.)
