Drive Belt: Adjustments

Satisfactory performance of the belt driven accessories depends on proper belt tension. Belt tensioning should be performed with the aid of Special Tool 7198. Because of space limitations in the engine compartment, the use of this gauge may be restricted. Raise the vehicle on a hoist and the remove the splash shield to gain access to the drive belts, if necessary. Adjust belt tension for either a New or Used belt. For specifications, refer to Belt Tension Chart.

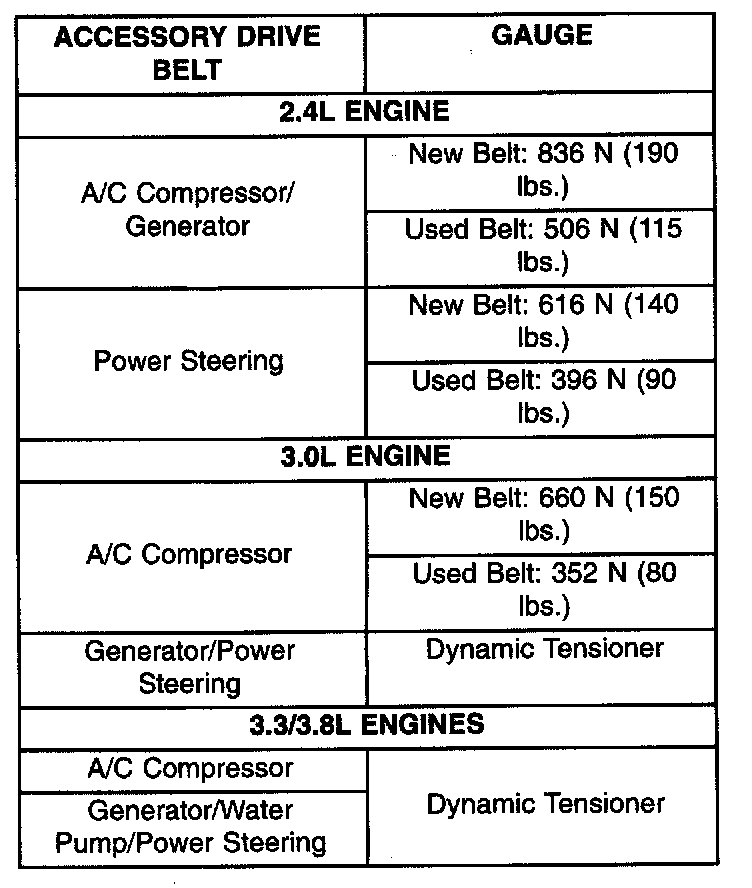

BELT TENSION CHART
