Stabilizer

STABILIZER

REMOVAL

1. Open sliding door.

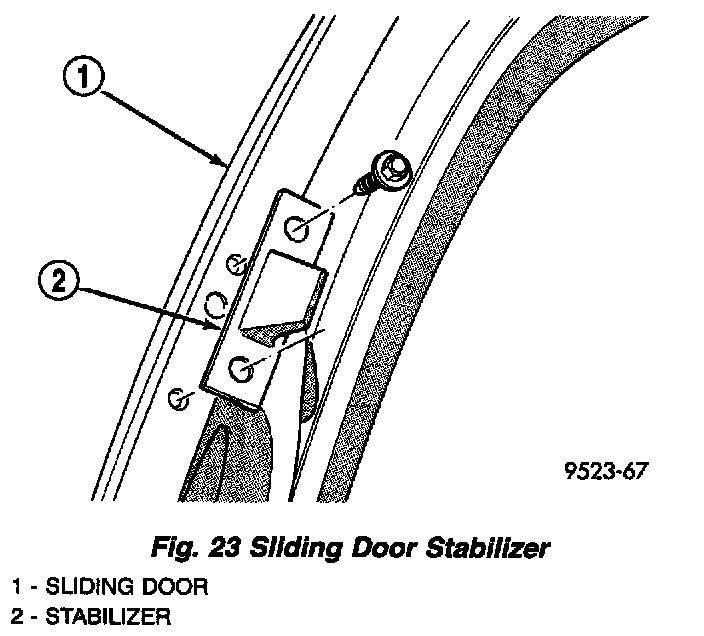

Fig. 23:

2. Remove screws attaching stabilizer to door end frame (Fig. 23).
3. Remove stabilizer from vehicle.

INSTALLATION

1. Place stabilizer in position on vehicle.

NOTE: Loose install screws first. Fit should be snug but free to move when closing door to align to body half stabilizer.

2. Install screws attaching stabilizer to door end frame.
3. Open door and final tighten screws.
4. Verify sliding door operation.
