Instrument Cluster Back Panel Replacement

REMOVAL

Battery Negative Cable:

1. Disconnect and isolate the battery negative cable.
2. Remove instrument cluster. Instrument Cluster W/Mech Trans Range Indicator Replacement

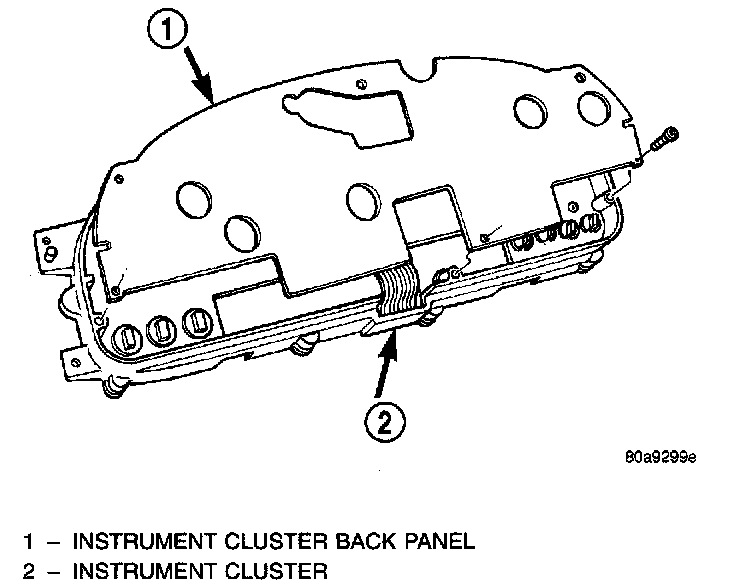

Instrument Cluster Back Panel:

3. Remove screws holding back panel to instrument cluster.
4. Remove back panel.

INSTALLATION
For installation, reverse the above procedures.
