Metric System

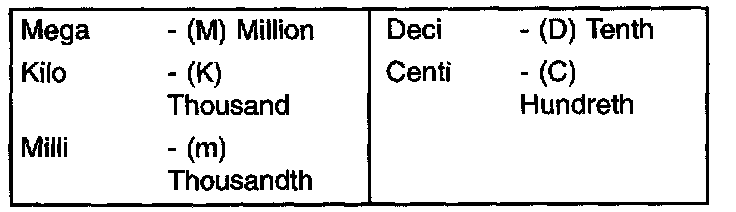

Metric Prefixes:

The metric system is based on quantities of one, ten, one hundred, one thousand and one million.

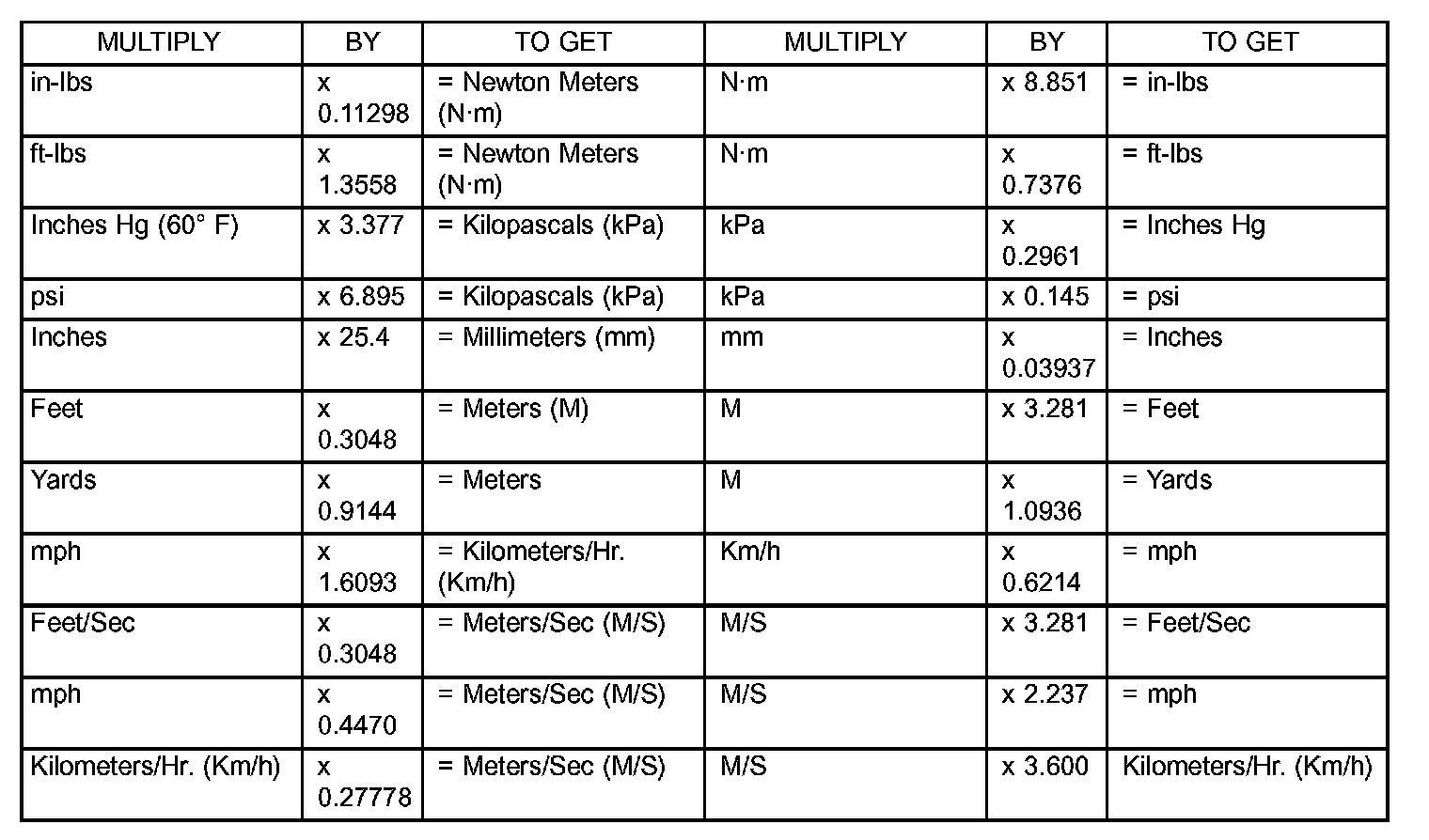

Conversion Formulas And Equivalent Values:

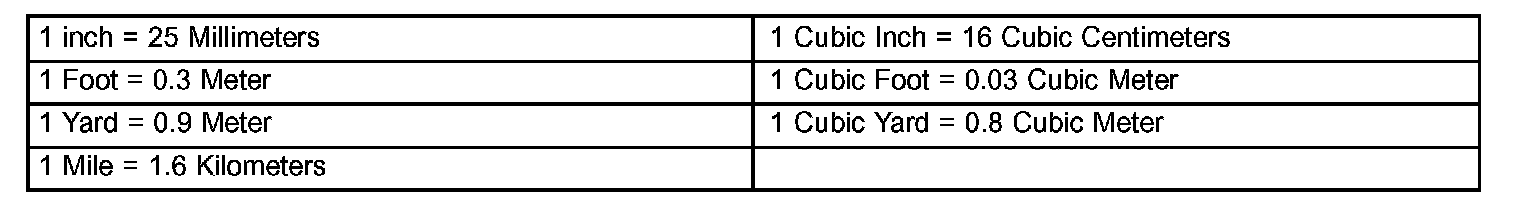

Common Metric Equivalent:

The following chart will assist in converting metric units to equivalent English and SAE units, or vise versa.

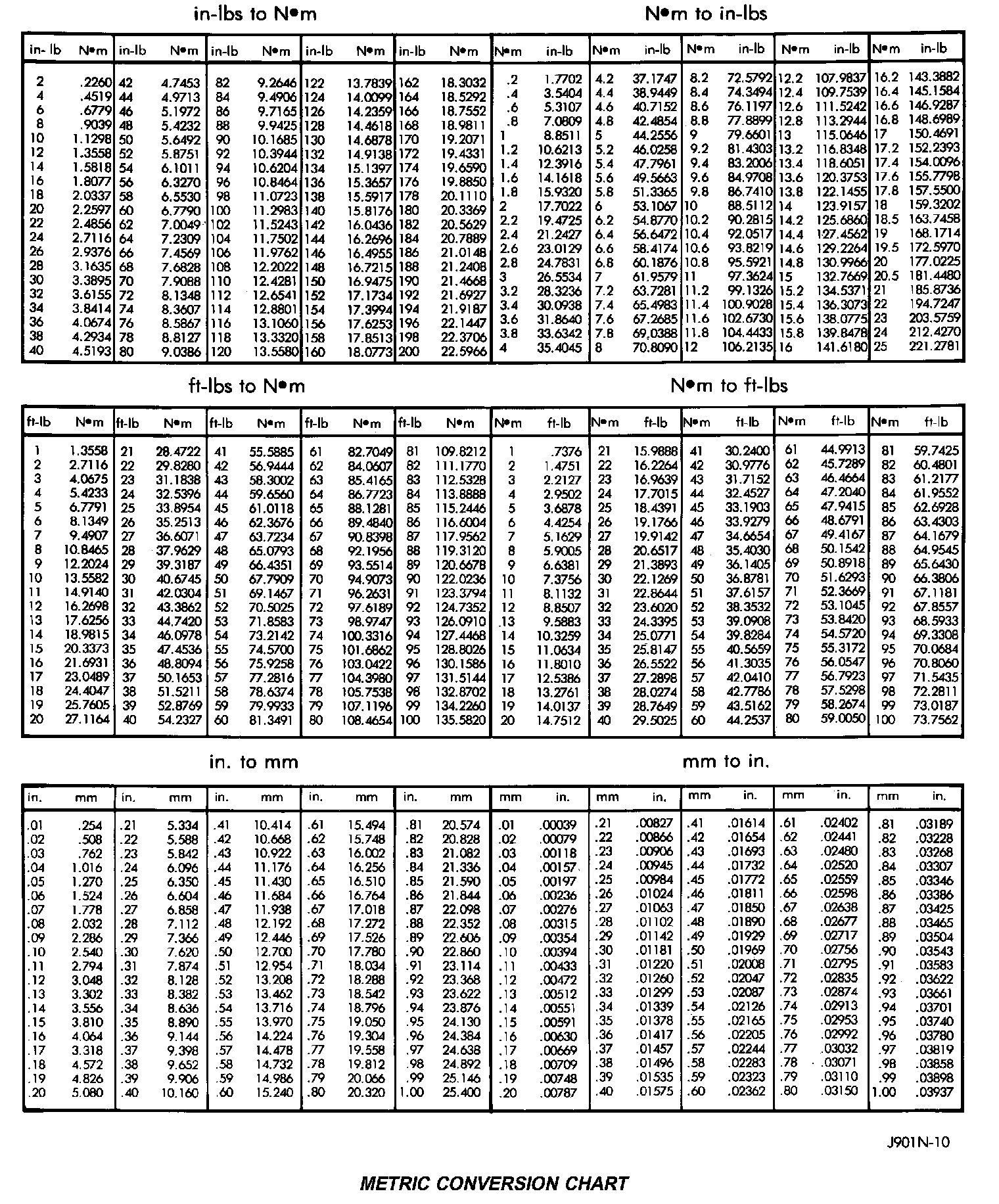

Metric Conversion Chart:

Refer to the Metric Conversion Chart to convert torque values listed in metric Newton- meters (Nm). Also, use the chart to convert between millimeters (mm) and inches (in.)
