Power Door Lock Switch: Service and Repair

REMOVAL
1. Open hood.

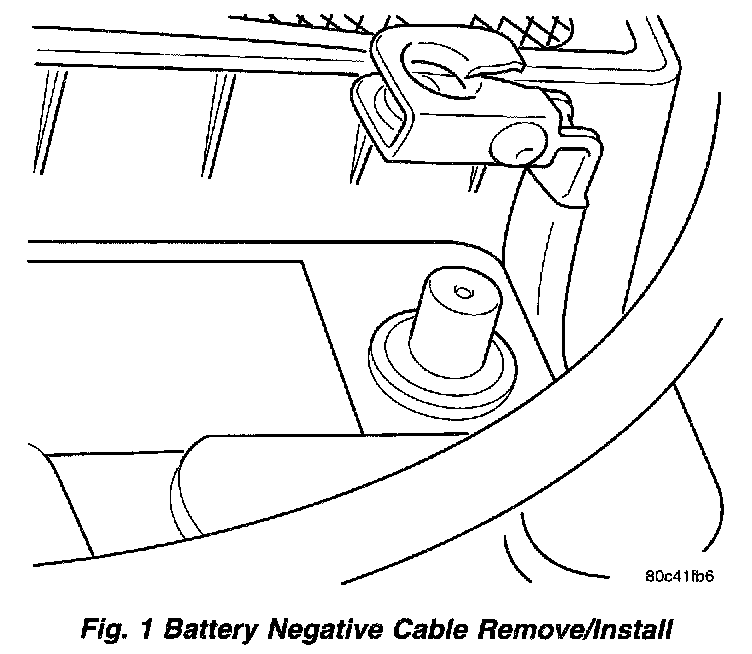

Fig.1 Battery Negative Cable Remove/Install:

2. Disconnect and isolate the battery negative cable.
3. Open front door.
4. Remove front door trim panel. Refer to Body, Front Door Trim Panel Removal and Installation.
5. Disconnect wire connector to door lock switch.
6. Remove two attaching screws to switch.
7. Remove the switch from trim panel.

INSTALLATION
1. Install the switch on trim panel.
2. Install two attaching screws to switch.
3. Connect wire connector to door lock switch.
4. Install front door trim panel. Refer to Body, Front Door Trim Panel Removal and Installation.
5. Close front door.
6. Connect the battery negative cable.
7. Close hood.
8. Verify vehicle and system operation.
