Power Door Lock Switch: Testing and Inspection

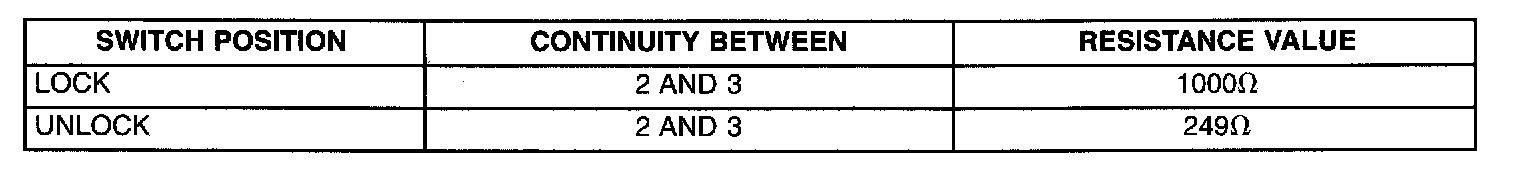

Door Lock Switch Resistance:

1. Remove the switch from its mounting location, and disconnect from vehicle wiring harness. Refer to Door Lock Switch Removal and Installation.
2. Using an ohmmeter, refer to Door Lock Switch Resistance table to determine if switch resistance is correct in the Lock and Unlock switch positions.
