Side Rail - Luggage Rack

SIDE RAIL - LUGGAGE RACK

REMOVAL

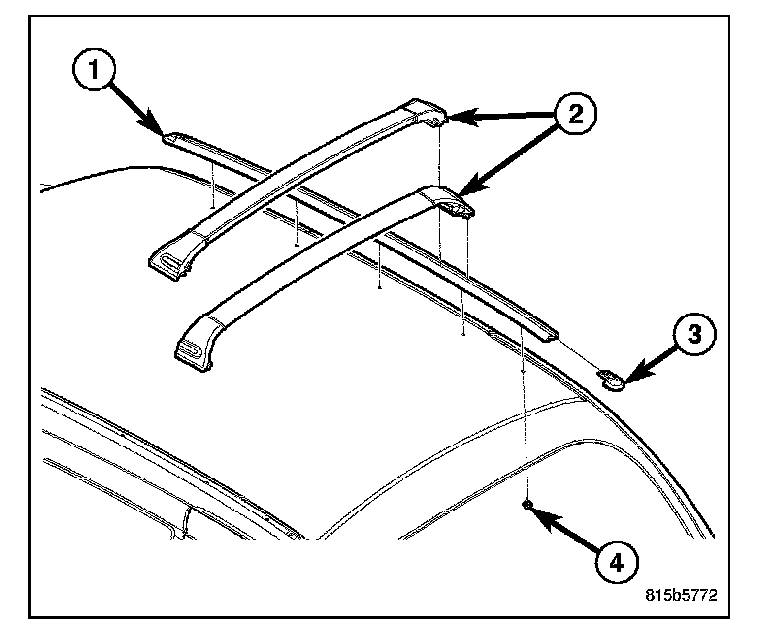

1. Remove the end caps (3) and crossbars (2).
2. Remove the trim panels as necessary from the side of the vehicle being serviced and lower the headliner to gain access to the side rail retaining nuts (4).
3. Remove the five side rail nuts and remove the side rail (1).

INSTALLATION




1. Position the luggage rack side rail (1) being serviced onto the top of the vehicle.
2. Apply a suitable body sealer to the side rail studs and install the five nuts (4). Tighten the nuts securely.
3. Reinstall the headliner and trim panels as necessary.
4. Install the crossbars (2) and end caps (3).
