Leak Detection Pump, Evaporative System
Leak Detection Pump, Evaporative System

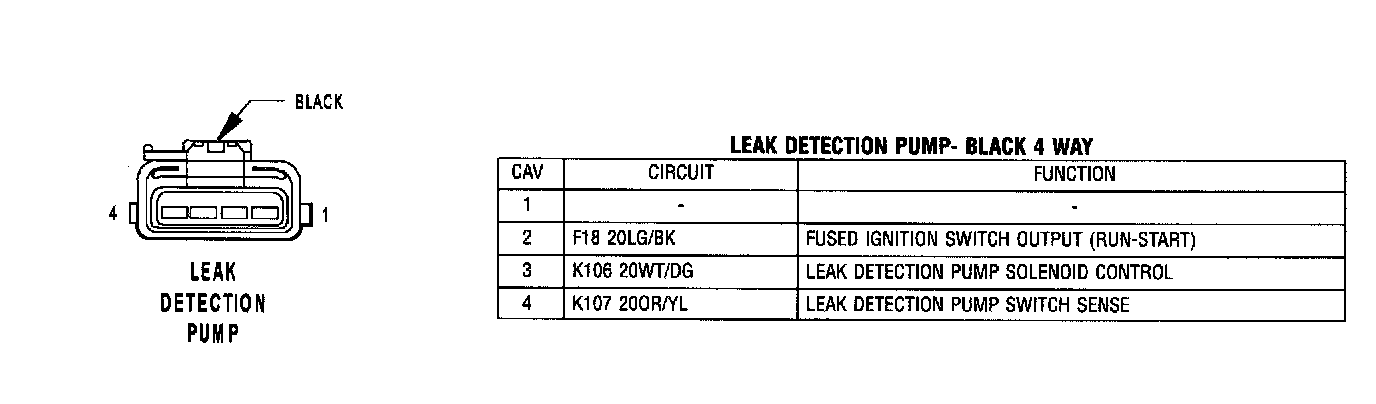

Leak Detection Pump:
