Camshaft End Play

CAMSHAFT END PLAY
1. Oil camshaft journals and install camshaft WITHOUT cam follower assemblies. Install rear cam caps and tighten screws to specified torque.
2. Using a suitable tool, move camshaft as far rearward as it will go.

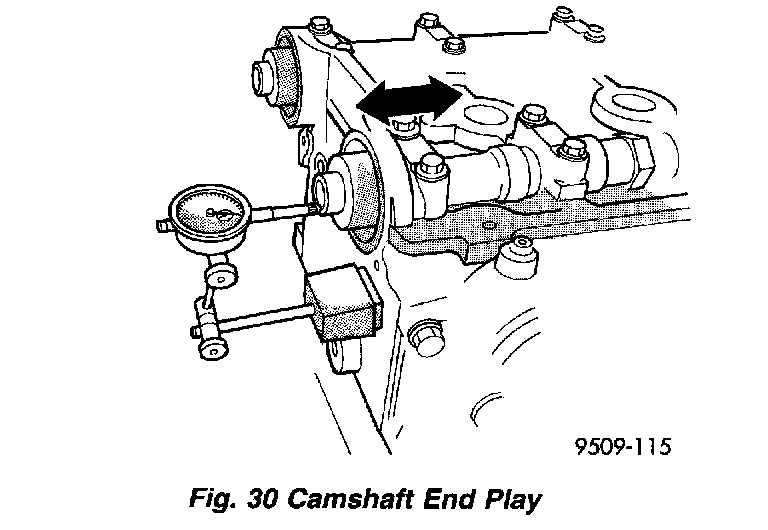

3. Zero dial indicator (Fig. 30).
4. Move camshaft as far forward as it will go.
5. End play travel: 0.05 - 0.15 mm (0.002 - 0.010 inch).
6. If end play is excessive, check cylinder head and camshaft for wear; replace as necessary.
