HVAC Control Knobs Replacement

REMOVAL
1. Open door.

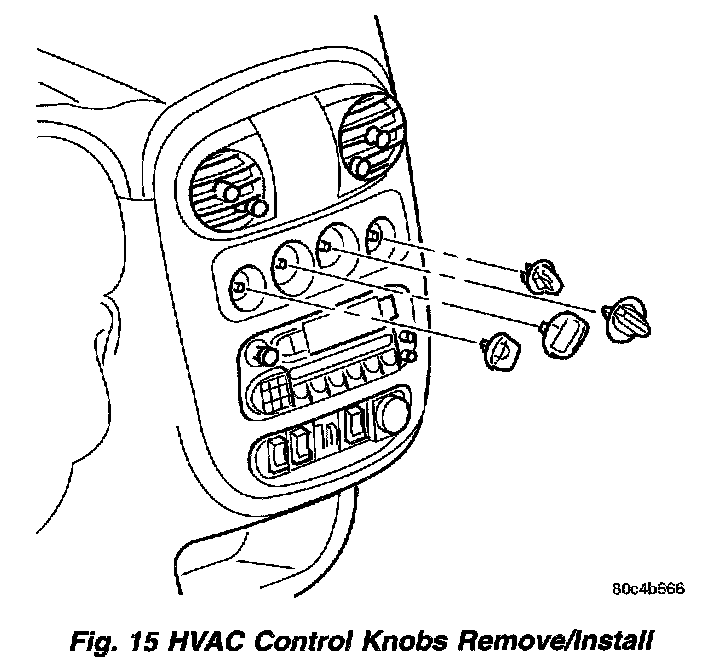

Fig.15 HVAC Control Knobs Remove/Install:

2. Pull off the HVAC control knobs.

INSTALLATION
1. Install the HVAC control knobs.
2. Close door.
3. Verify vehicle and system operation
