Combination Switch: Service and Repair

REMOVAL
1. Open hood.

Fig.5 Battery Negative Cable Remove/Install:

2. Disconnect and isolate the battery negative cable.
3. Remove both upper and lower steering column shrouds. Refer to Instrument Panel Systems, Steering Column Shroud Removal and Installation.

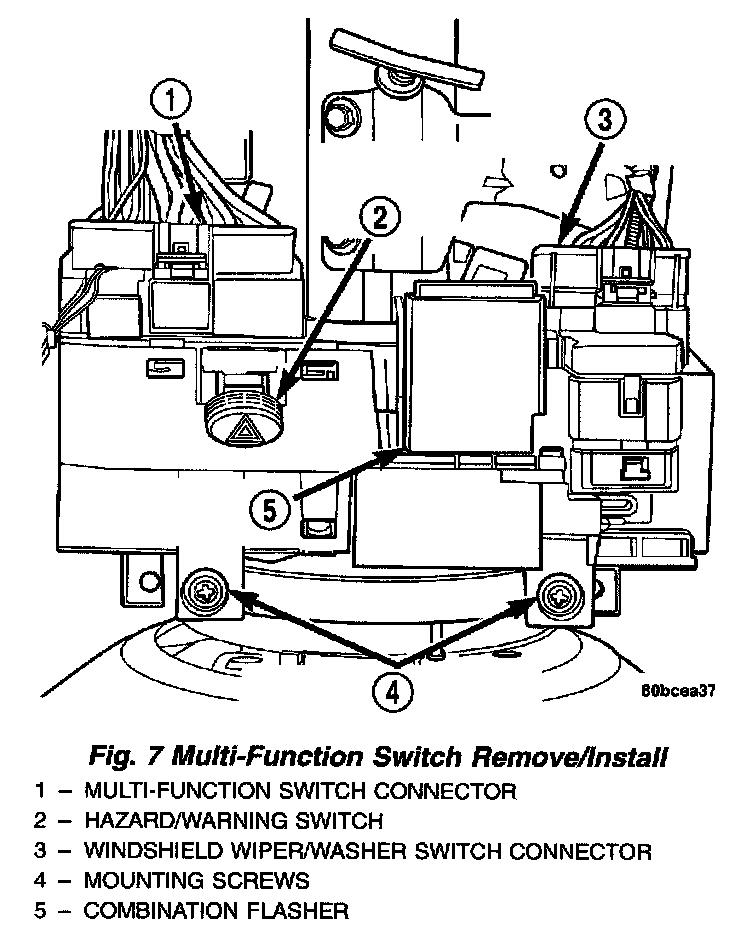

Fig.7 Multi-Function Switch Remove/Install:

4. Disconnect both posi-lock harness connectors at the rear of the multi-function switch
5. Remove multi-function switch mounting screws and remove switch from vehicle.

INSTALLATION

NOTE:
- If replacing the multi-function switch, the combination flasher must be transferred to new switch.
- If replacing the multi-function switch, the windshield wiper/washer switch must be transferred to the new switch.
- Remove the two torx screws retaining the wiper/washer switch, place next to the new multi-function switch and install two screws.

1. Place switch into place and install mounting screws. Torque multi-function switch to column retaining screws to 3 Nm (27 in. lbs.).
2. Connect both posi-lock harness connectors at the rear of the multi-function switch
3. Install both upper and lower steering column shrouds. Refer to Instrument Panel Systems, Steering Column Shroud Removal and Installation.
4. Connect the battery negative cable.
5. Close hood.
6. Verify vehicle and system operation.
