Chrysler
>>
2001
>>
PT Cruiser L4-2.4L VIN B
>>
Repair and Diagnosis
>>
Power and Ground Distribution
>>
Relay Box
>>
Application and ID
>>
Fuse Block
Fuse Block
Fuse Block

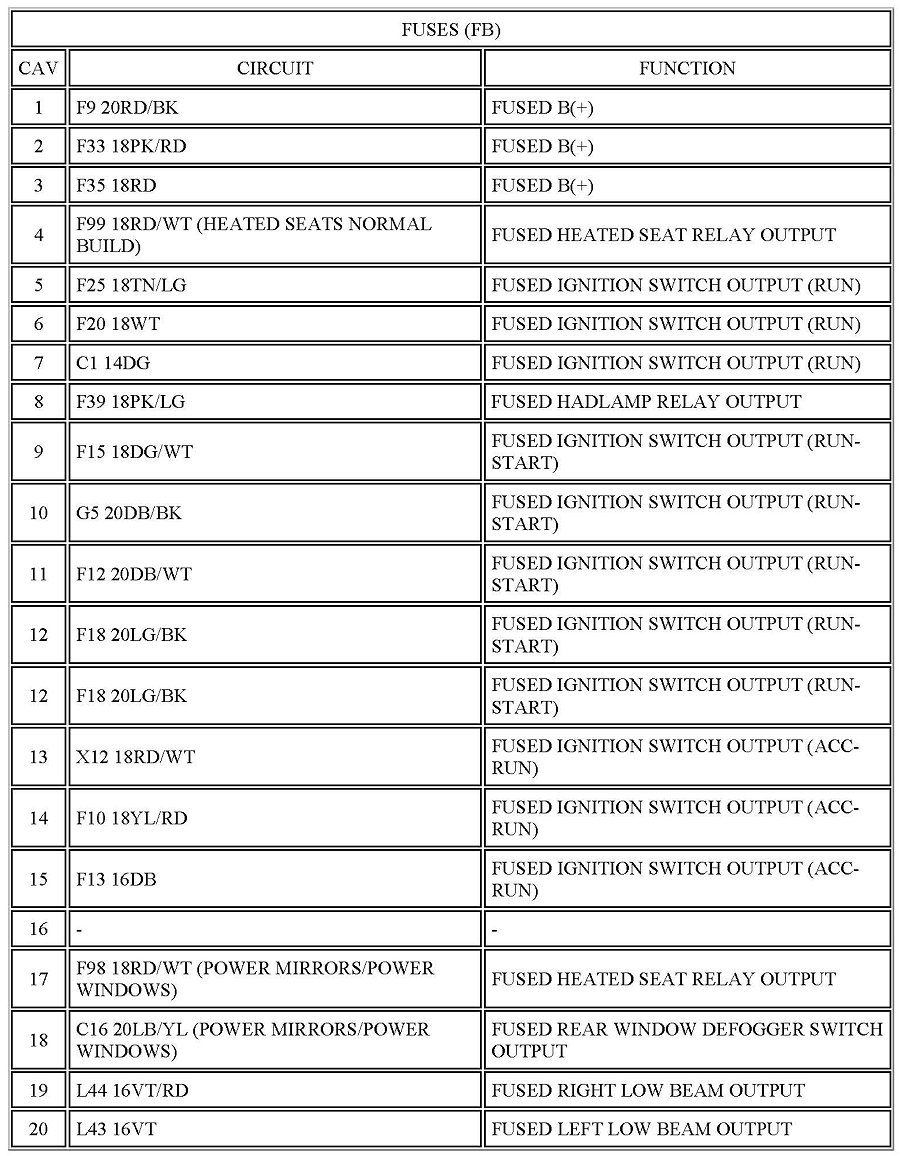

Fuse Block (1 Of 2):
Fuse Block (2 Of 2):
