EGR Backpressure Transducer: Service and Repair

If the EGR system operates incorrectly, replace the entire EGR valve and transducer together. The EGR valve and electrical transducer are calibrated together.

REMOVAL
1. Remove the air cleaner lid, disconnect the inlet air temperature sensor and makeup air hose.
2. Remove the negative battery cable.

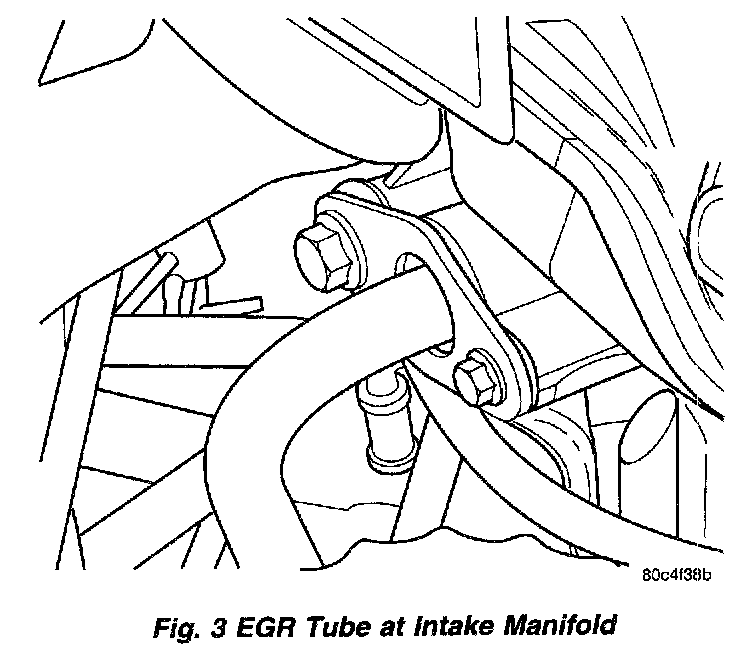

Fig.3 EGR Tube At Intake Manifold:

3. Loosen the bolts at the intake manifold.
4. Remove EGR tube bolts at EGR Valve.

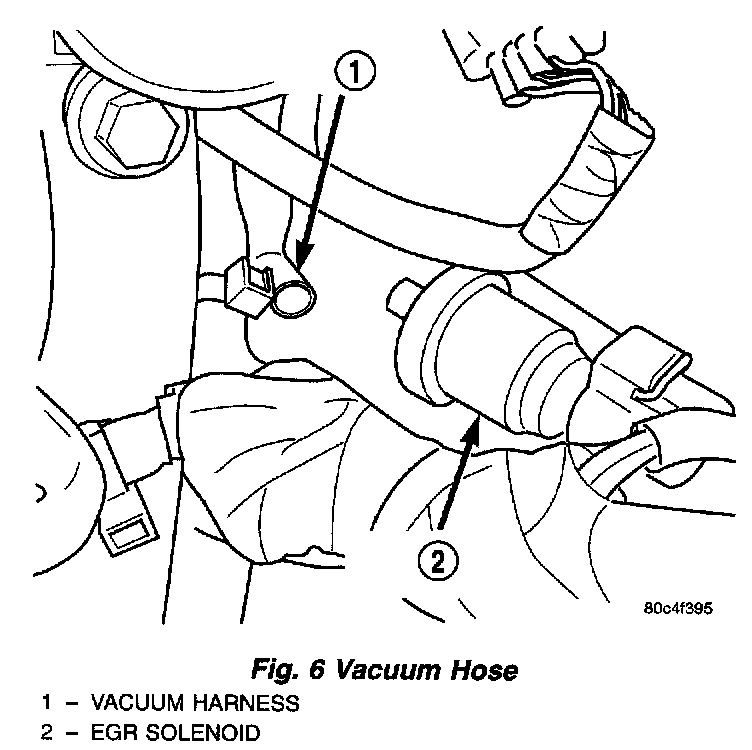

Fig.6 Vacuum Hose:

6. Disconnect the vacuum supply hose to EGR transducer solenoid.

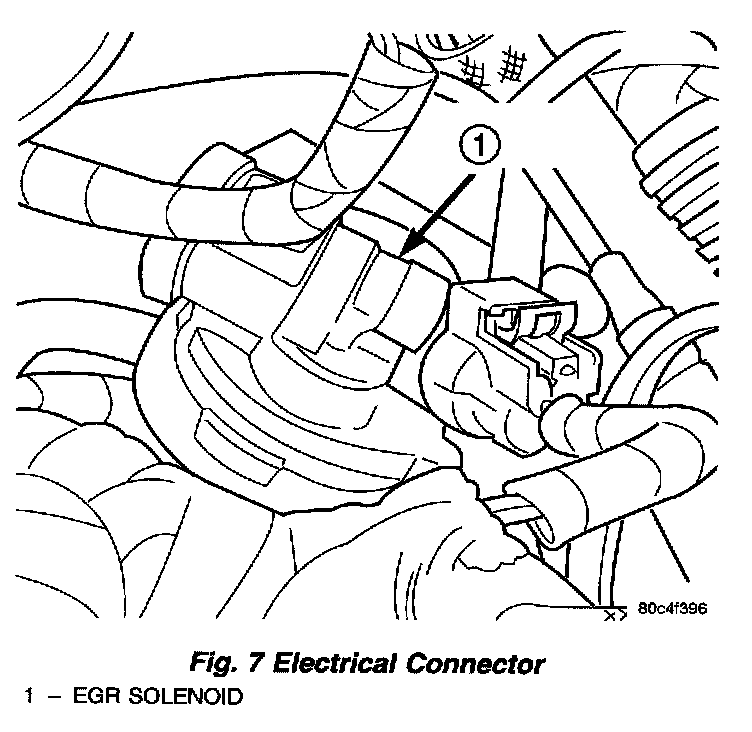

Fig.7 Electrical Connector:

7. Unlock the connector then disconnect the electrical connector from solenoid.
8. Remove the 2 bolt at EGR valve to cylinder head. Remove EGR valve and transducer.
9. Clean gasket surfaces. Discard old gaskets. If necessary, clean EGR passages.

INSTALLATION
1. Connect vacuum supply tube to solenoid.
2. Attach electrical connector to solenoid.

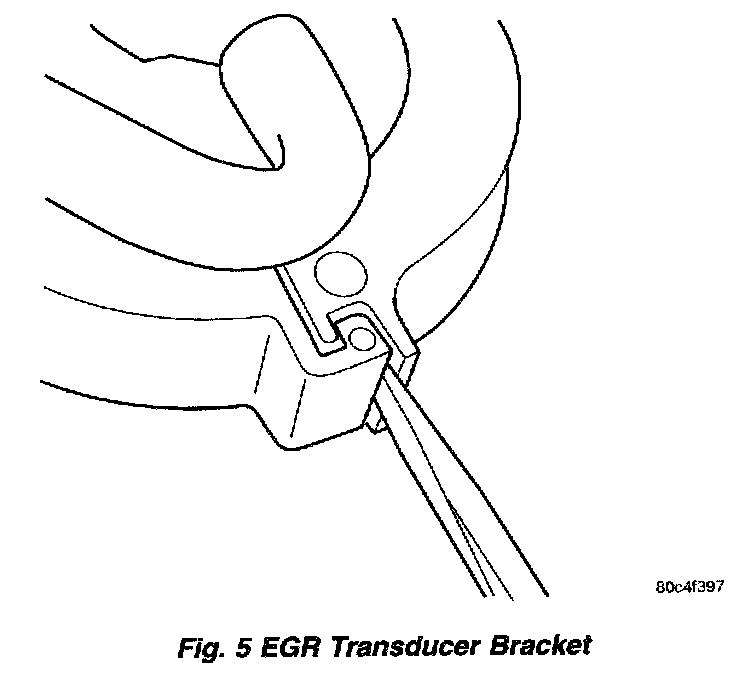

Fig.5 EGR Transducer Bracket:

3. Install EGR transducer into the bracket and snap closed.
4. Loosely install EGR valve with new gaskets.
5. Finger Tighten EGR tube fasteners.
6. Tighten EGR valve mounting screws to 22 Nm (195 in. lbs.) torque.
7. Tighten EGR tube fasteners to 11 Nm (97 in. lbs.) torque.

NOTE: Make sure that the hoses are routed away from the hot EGR tube and Valve and clipped.

8. Install the negative battery cable.
9. Install the air cleaner lid, connect the inlet air temperature sensor and makeup air hose.
