Manifold Pressure/Vacuum Sensor: Locations

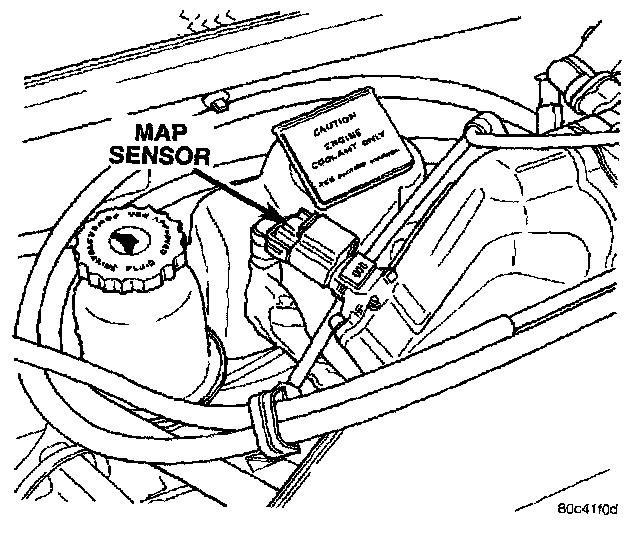

Fig.6 MAP Sensor:

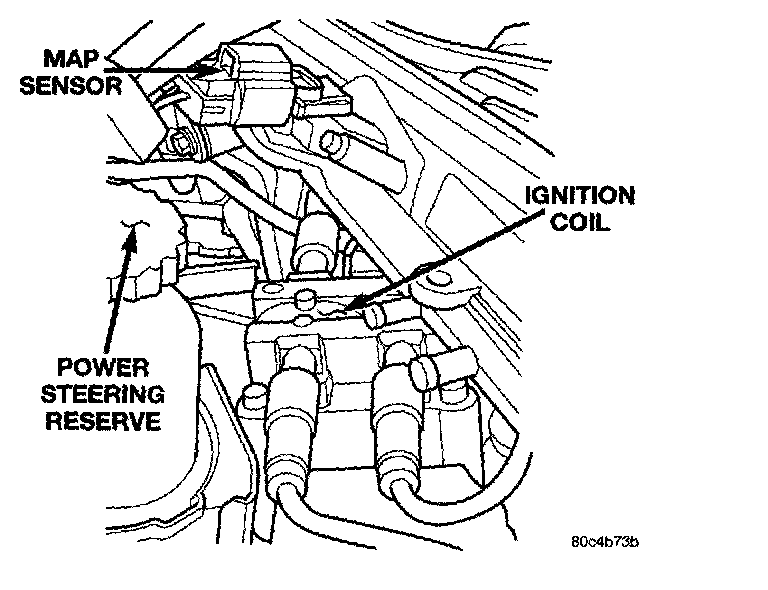

The MAP sensor mounts to the intake manifold.
