Power Steering Pressure Switch: Locations

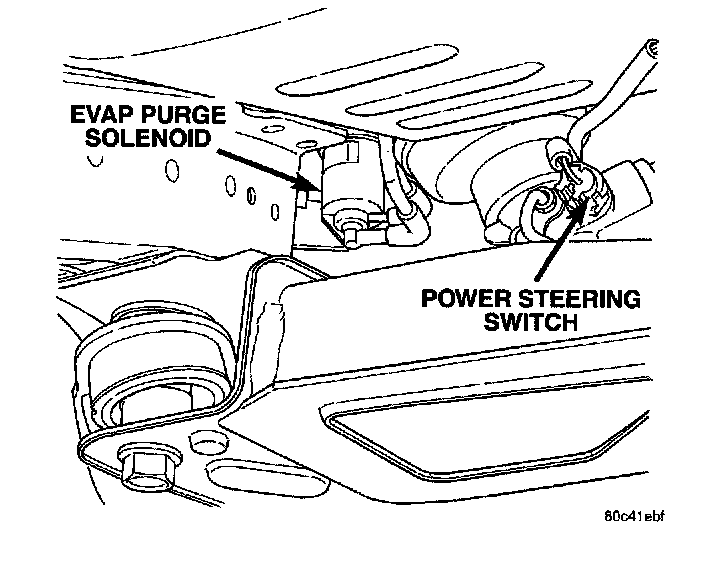

Fig.7 Power Steering Pressure Switch:
A pressure sensing switch is located on the power steering gear.
