Checking IAC Motor

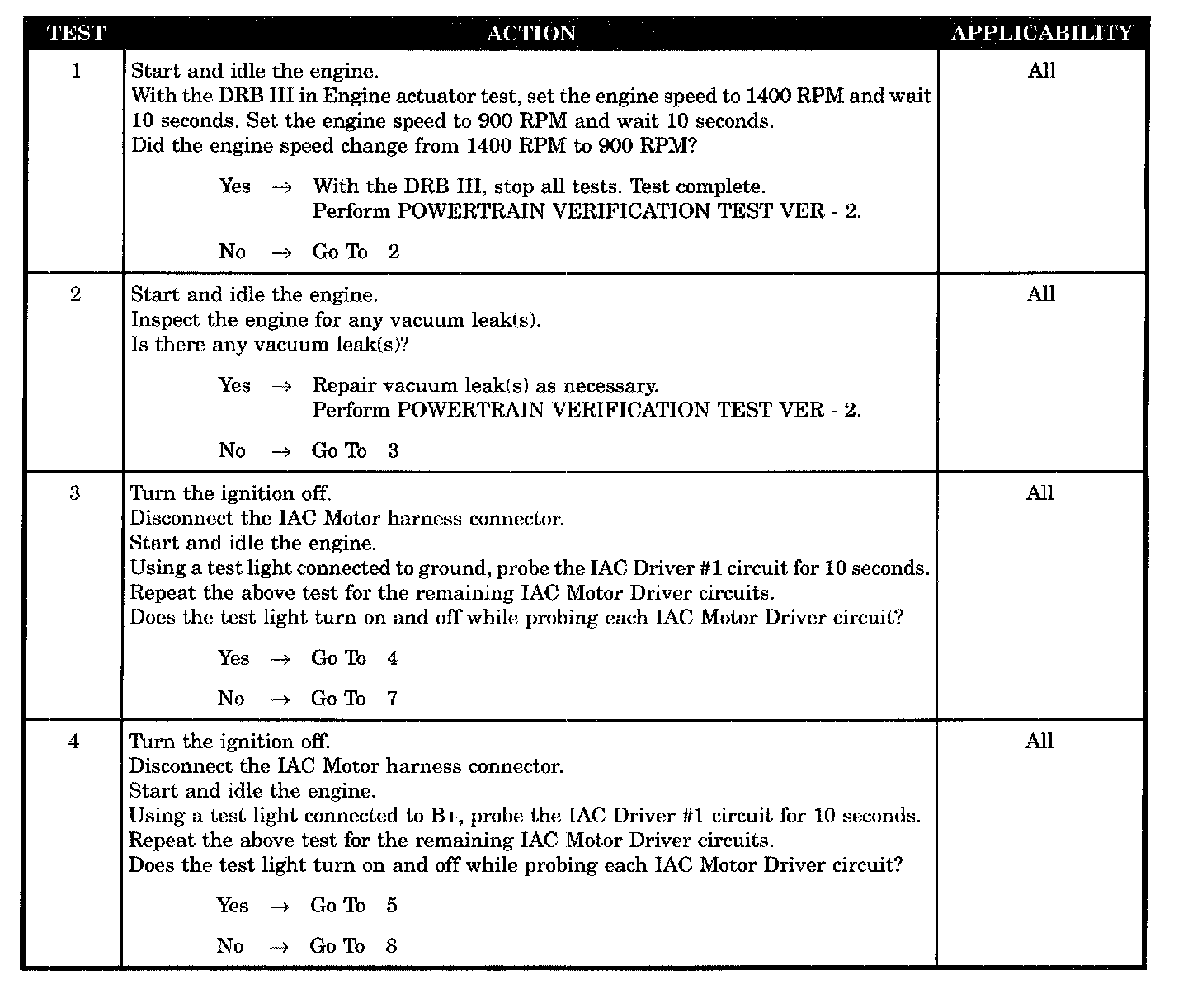

Tests 1 - 4:

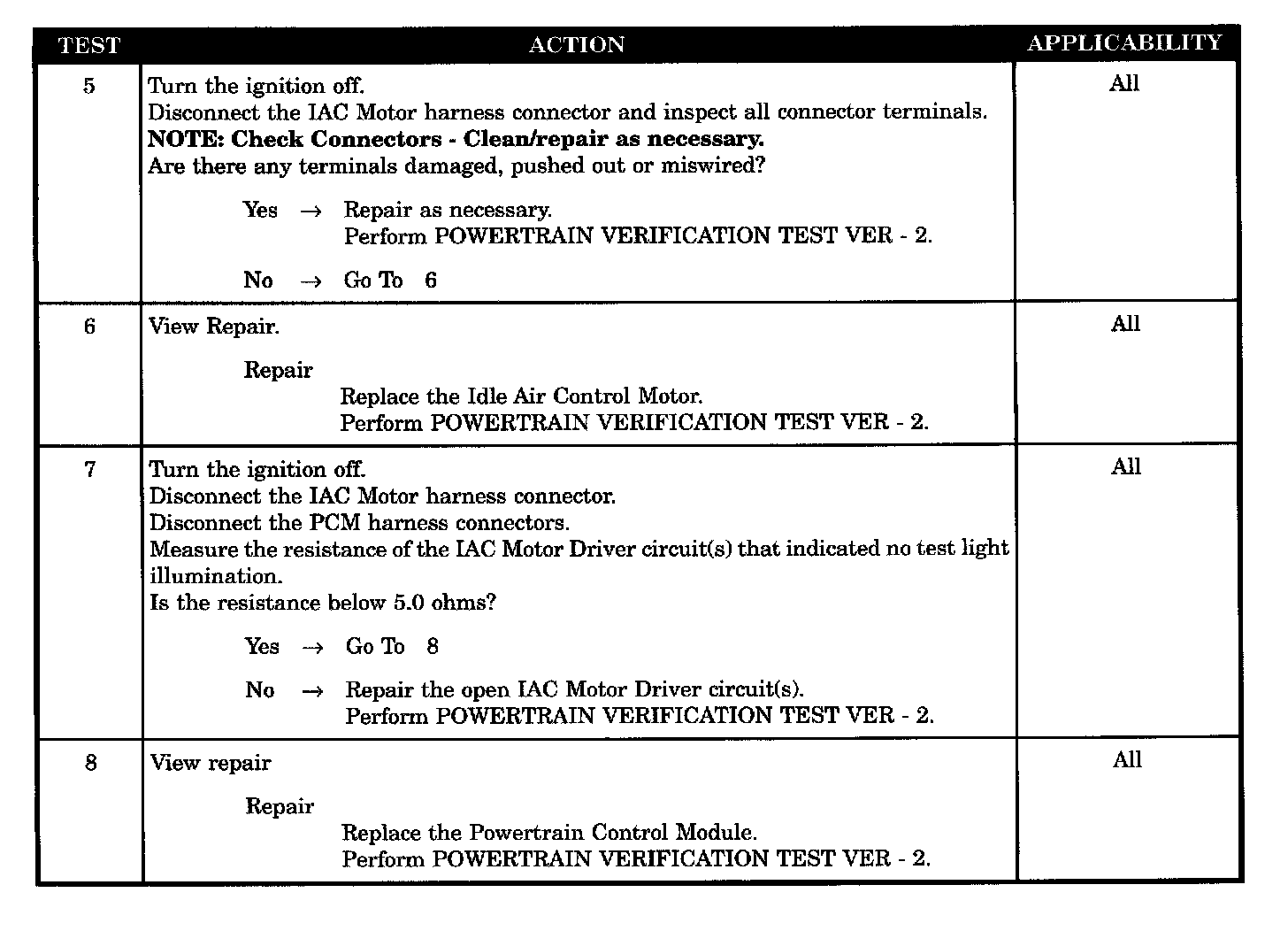

Tests 5 - 8:

SYMPTOM
CHECKING IAC MOTOR OPERATION WITH NO DTC'S

POSSIBLE CAUSES
- Actuator test
- Checking for vacuum leaks
- Checking for open driver circuits
- Checking IAC harness connector
- IAC motor
- PCM - IAC Motor driver
