Checking the Engine Coolant Temperature Sensor Operation

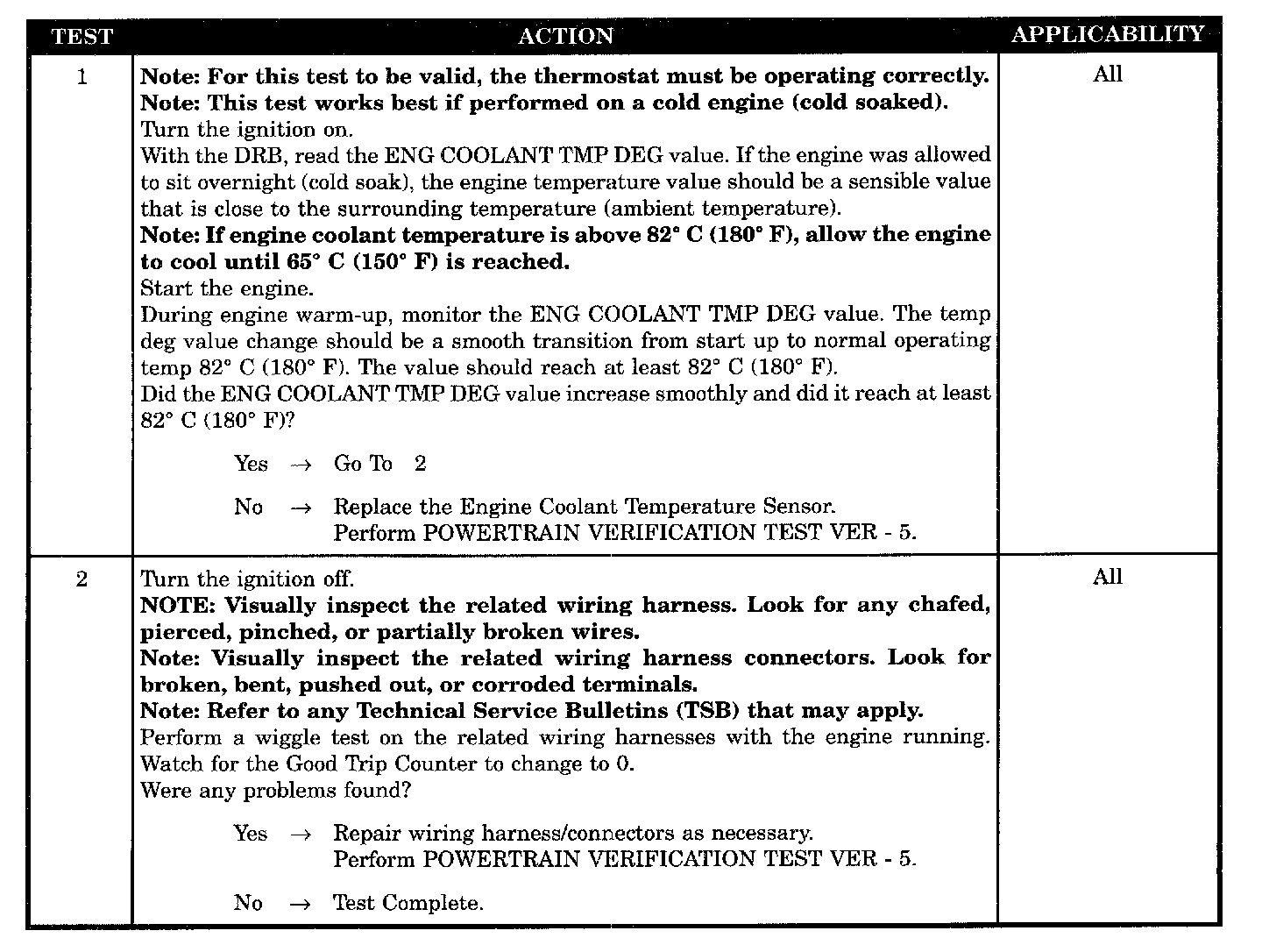

Tests 1 - 2:




SYMPTOM
CHECKING THE ENGINE COOLANT TEMPERATURE SENSOR

POSSIBLE CAUSES
- ECT sensor (out of calibration)
- ECT wiring harness intermittent
