Checking the PCM Power and Ground Circuits

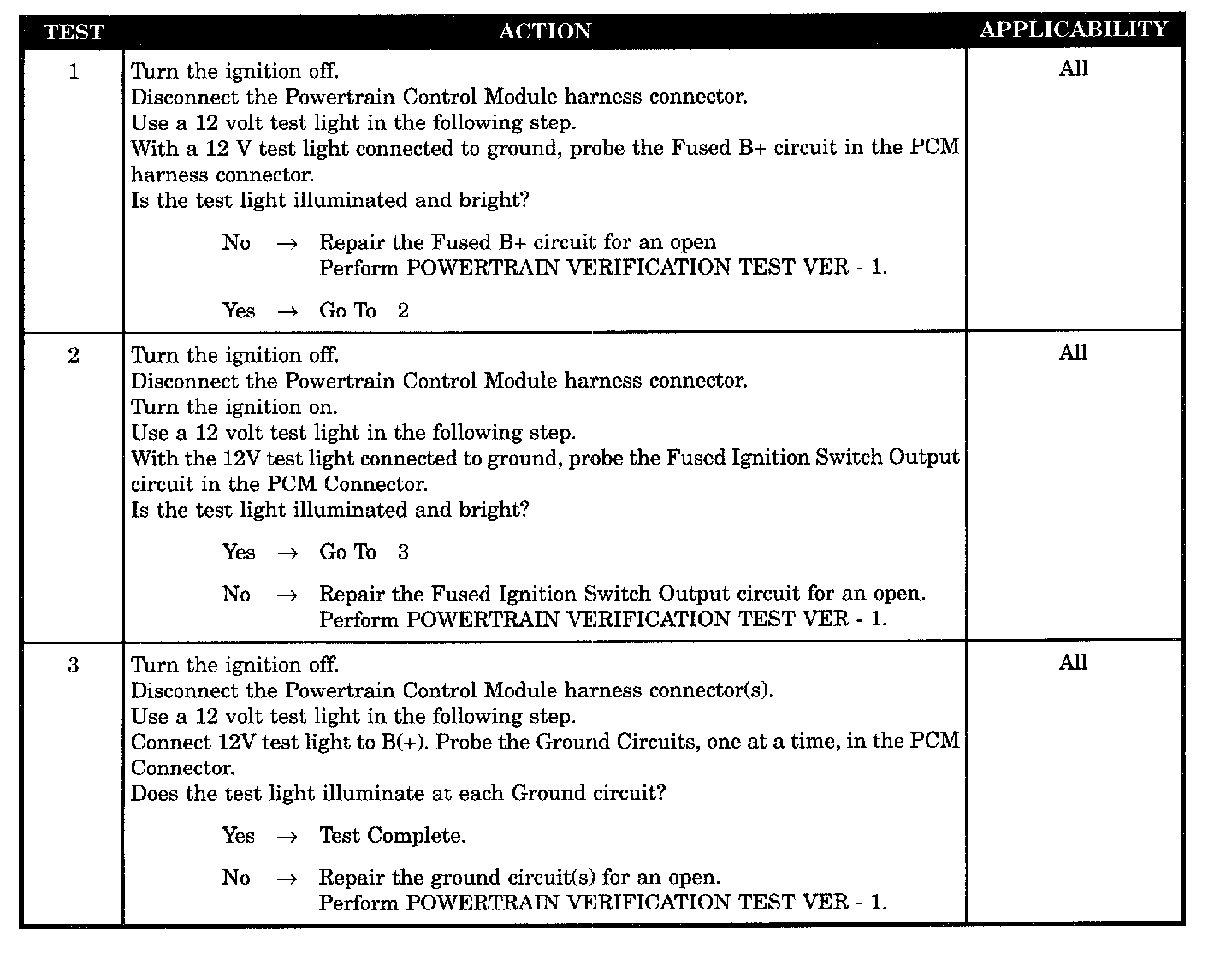

Tests 1 - 3:




SYMPTOM
CHECKING THE PCM POWER AND GROUNDS

POSSIBLE CAUSES
- Fused ignition switch output circuit open
- PCM Ground circuit(s) open
- Fused B(+) Circuit open
