Ignition Cable: Service and Repair

Clean high tension cables with a cloth moistened with a non-flammable solvent. Wipe the cables dry. Check for brittle or cracked insulation.

Resistance cables are identified by the words Electronic Suppression.

REMOVAL
1. Remove the air cleaner lid, disconnect the inlet air sensor and makeup air hose.
2. Disconnect the negative battery cable.
3. Remove the upper intake manifold, refer to the Engine for more information.
4. Disconnect the cable from the ignition coil first.

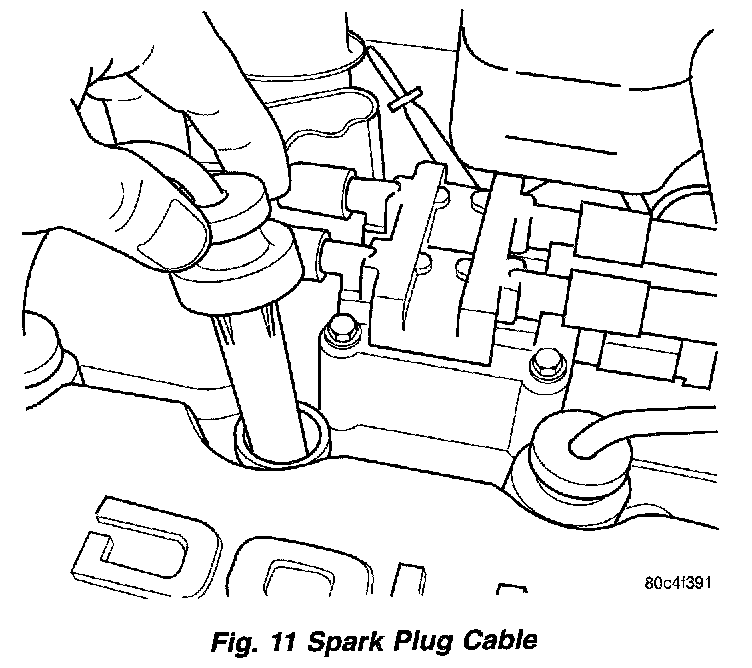

Fig.11 Spark Plug Cable:

5. The cables insulate the spark plugs and cover the top of the spark plug tubes. To remove the cables, lightly grasp the top of the cable. Rotate the insulator 90 ° and pull straight up.

INSTALLATION
1. To install the cables, tight1y grasp the top of the cable. Rotate the insulator and push straight down.
2. Connect the cable to the ignition coil.
3. Install the upper intake manifold, refer to the Engine for more information
4. Connect the negative battery cable.
5. Install the air cleaner lid and connect the inlet air temperature sensor and makeup hose.
