PT Cruiser L4-2.4L VIN B
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Ignition System
>>
Specifications
>>
Electrical Specifications
Electrical Specifications

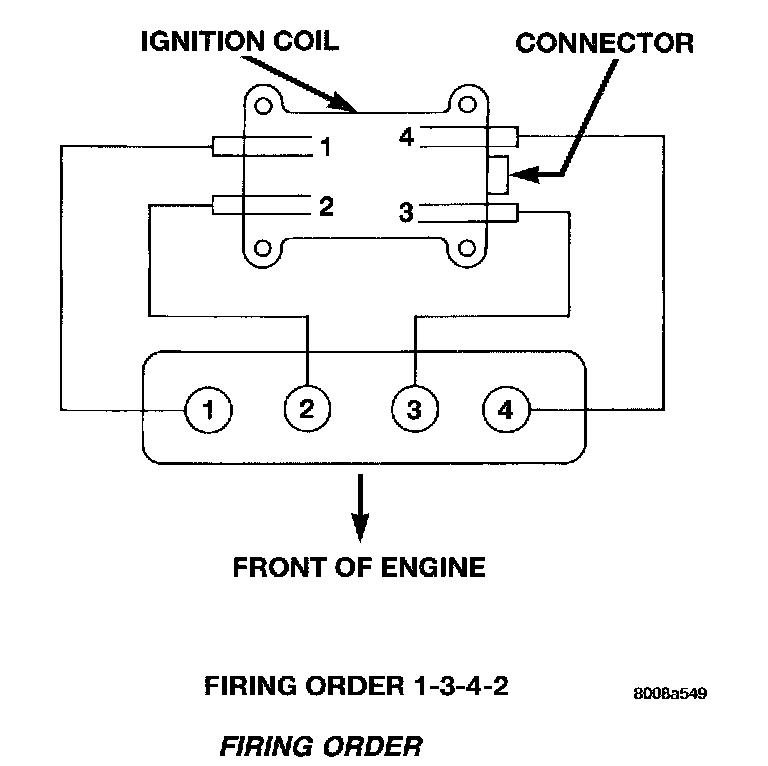

Firing Order 1-3-4-2:
