Cylinder Head
REMOVAL1. Perform fuel system pressure release procedure before attempting any repairs.
2. Disconnect inlet air temperature sensor and make-up air hose.
3. Remove clean air hose and air cleaner housing.
4. Disconnect negative cable from battery.
5. Drain cooling system.
6. Remove upper intake manifold.

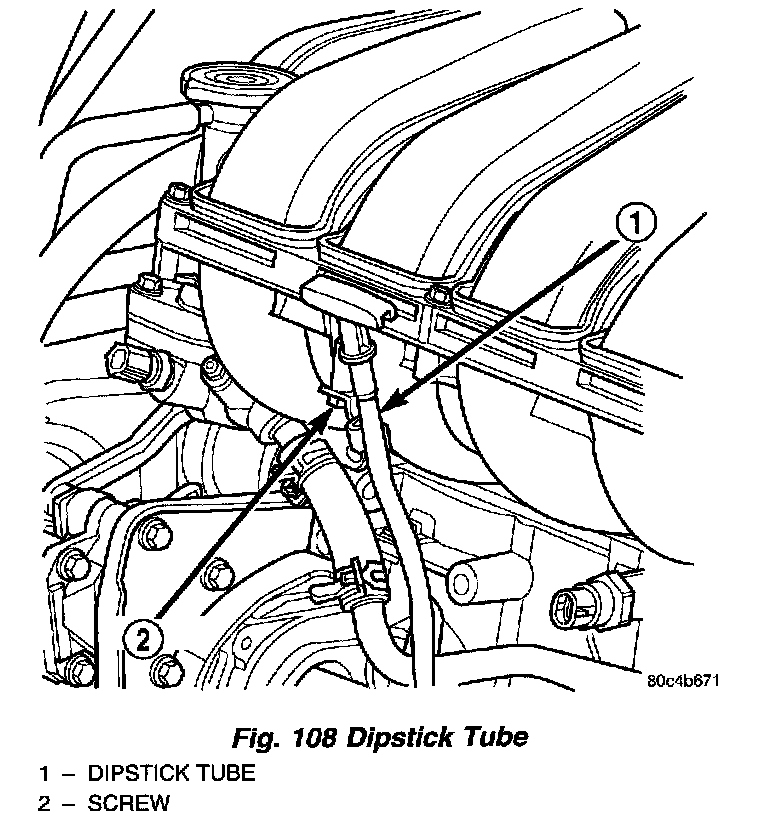

7. Remove fastener attaching dipstick tube to lower intake manifold (Fig. 108).
8. Disconnect the fuel supply line quick-connect at the fuel rail assembly.
9. Remove heater tube support bracket from cylinder head.
10. Disconnect upper radiator and heater supply hoses from coolant outlet connections.
11. Remove accessory drive belts.
12. Raise vehicle and disconnect exhaust pipe from manifold.
13. Disconnect ignition coil wiring connector. Remove ignition coil and plug wires from engine.

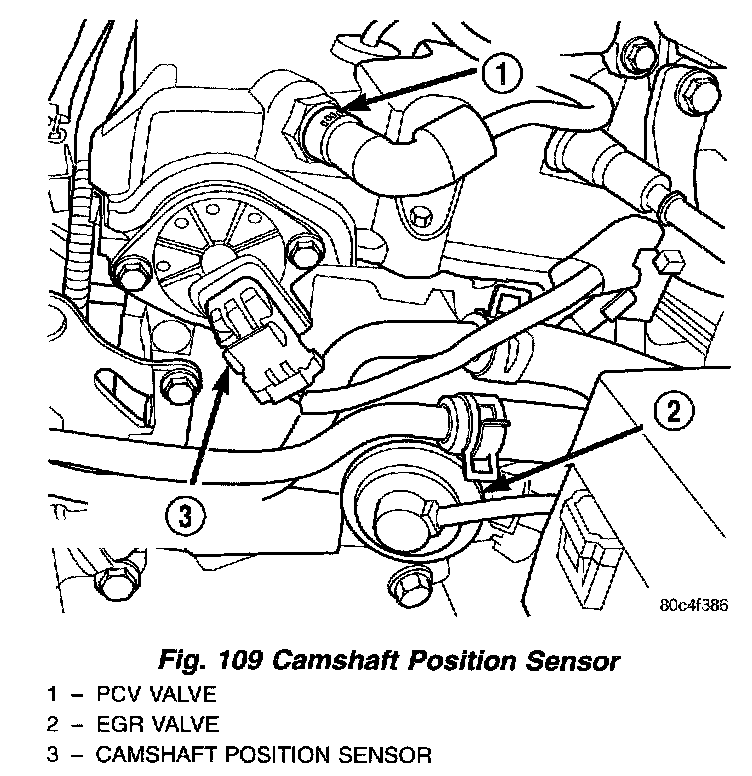

14. Disconnect cam sensor wiring connector (Fig. 109).
15. Remove timing belt and camshaft sprockets.
16. Remove timing belt idler pulley and rear timing belt cover.

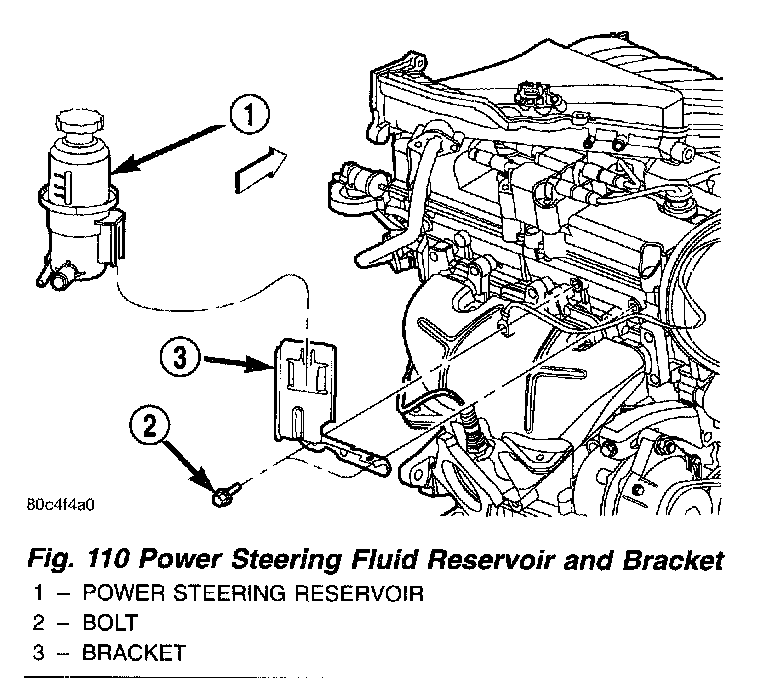

17. Remove power steering pump fluid reservoir and support bracket to cylinder head (Fig. 110).
18. Remove cylinder head cover.
19. Remove camshafts.
20. Remove camshaft followers.
21. Remove cylinder head bolts in the reverse sequence of tightening (Fig. 113).
22. Remove cylinder head from engine block.
23. Inspect and clean cylinder head and block sealing surfaces.
NOTE: Ensure cylinder head bolt holes in the block are clean, dry (free of residual oil or coolant), and threads are not damaged.
INSTALLATION

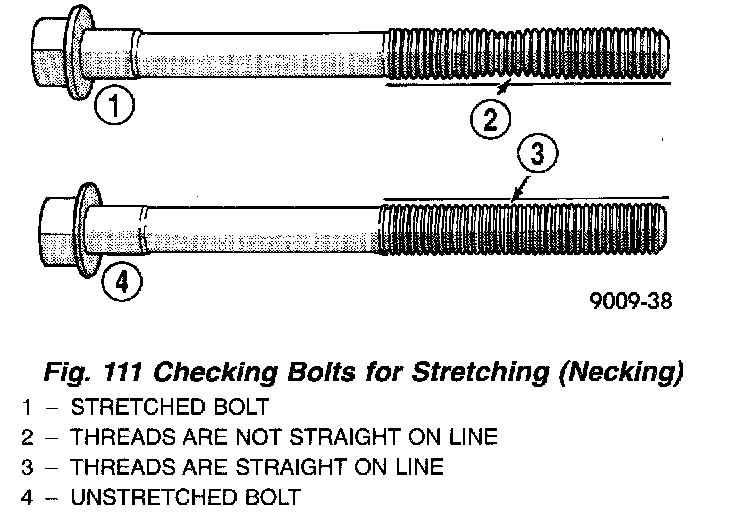

NOTE: The Cylinder head bolts should be examined BEFORE reuse. If the threads are necked down, the bolts should be replaced (Fig. 111).
Necking can be checked by holding a scale or straight edge against the threads. If all the threads do not contact the scale, the bolt should be replaced.

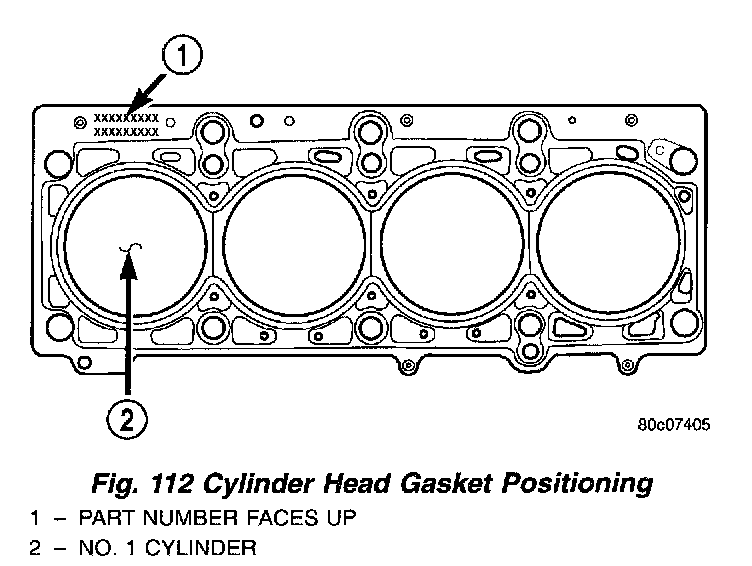

1. Position the new cylinder head gasket on cylinder block with the part number facing up (Fig. 112). Ensure gasket is seated over the locating dowels in block.
2. Before installing the bolts, the threads should be lightly coated with engine oil.

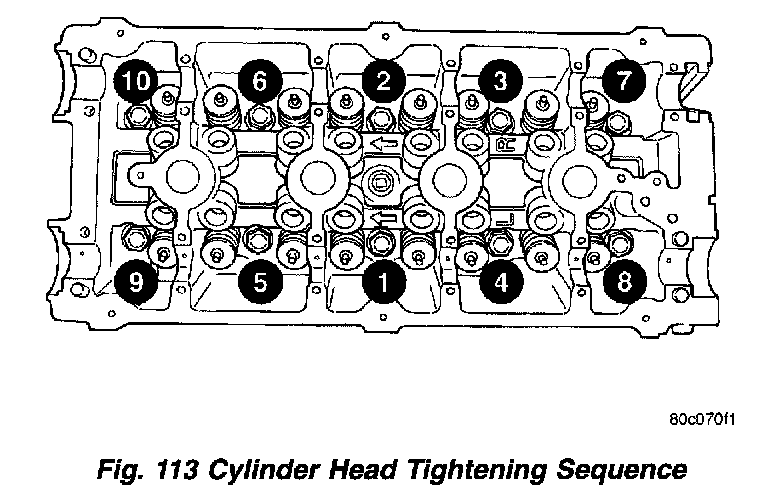

3. Tighten the cylinder head bolts in the sequence shown in (Fig. 113). Using the 4 step torque-turn method, tighten according to the following values:
- First All to 34 Nm (25 ft. lbs.)
- Second All to 68 Nm (50 ft. lbs.)
- Third All to 68 Nm (50 ft. lbs.)
CAUTION: Do not use a torque wrench for the following step.
- Fourth Turn an additional 1/4 Turn.
4. Install cam followers and camshafts.
5. Install cylinder head cover.
6. Install rear timing belt cover and timing belt idler pulley.
7. Install camshaft sprockets and timing belt.
8. Connect cam sensor wiring connector (Fig. 109).
9. Install ignition coil and plug wires. Connect ignition coil wiring connector.
10. Install power steering pump reservoir and support bracket to cylinder head (Fig. 110).
11. Raise vehicle and install the exhaust pipe to the manifold.
12. Install accessory drive belts.
13. Install lower intake manifold.
14. Connect upper radiator and heater supply hoses to coolant outlet connections.
15. Install heater tube support bracket to cylinder head.
16. Install fastener attaching dipstick tube to lower intake manifold (Fig. 108).
17. Connect fuel supply line quick-connect at the fuel rail assembly.
18. Install upper intake manifold.
19. Fill cooling system.
20. Connect negative cable to battery.
21. Install clean air hose and air cleaner housing.
22. Connect inlet air temperature sensor and make-up air hose.
23. Perform camshaft/crankshaft synchronization procedure.
