Shift Interlock: Testing and Inspection

BRAKE/TRANSMISSION SHIFT INTERLOCK SYSTEM
The following chart describes the normal operation of the Brake Transmission Shift Interlock (BTSI) system. If the "expected response" differs from the vehicle's response, then system repair and/or adjustment is necessary.

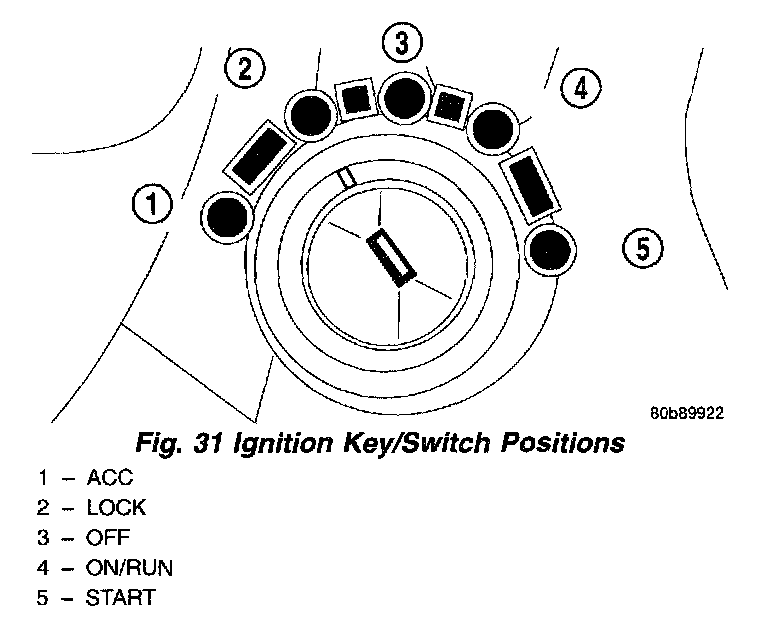

Refer to the chart that expected shifter response, depending on ignition key/switch (Fig. 31) and brake pedal positions.

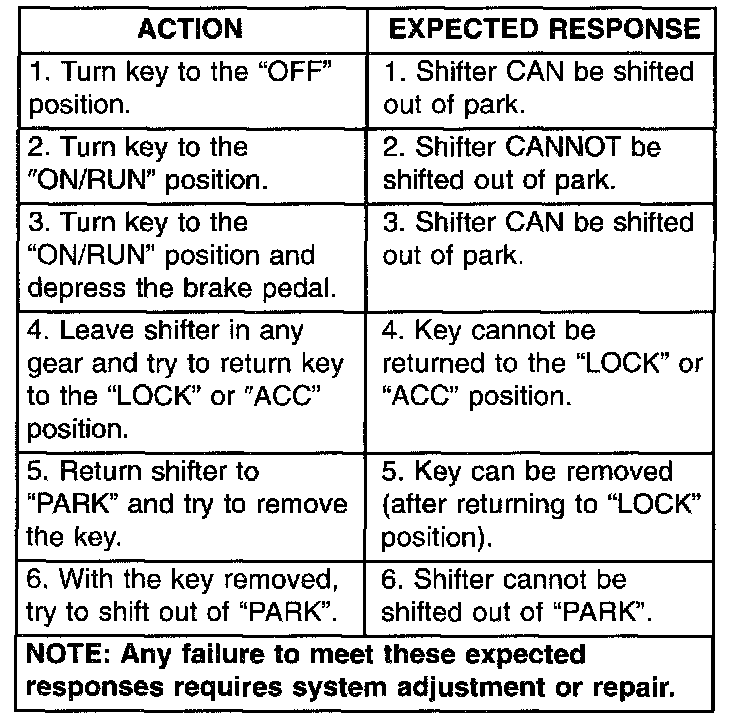

EXPECTED RESPONSE
