Power Window Switch: Testing and Inspection

Window Switch Test

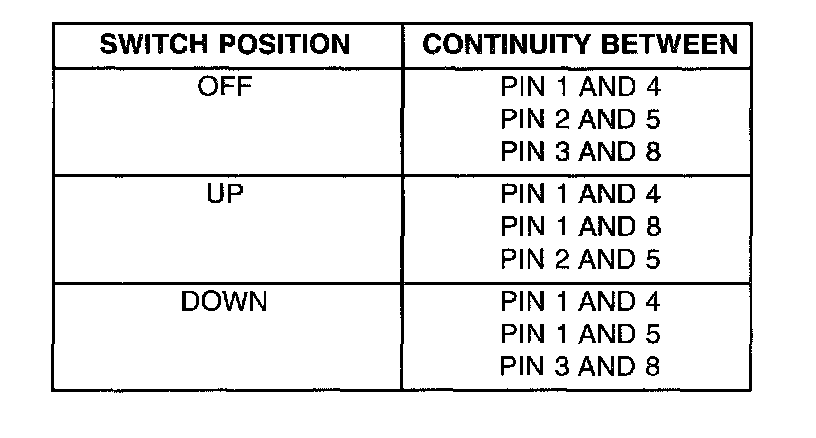

Power Window Switch Continuity:

Remove the switch from its mounting. Refer to Removal and Installation. Using an ohmmeter, test the window switch for continuity in all positions Refer to Power Window Switch Continuity table to determine if continuity is correct. If the results are not obtained, replace the switch.
