Windshield Wiper/Washer Switch Test

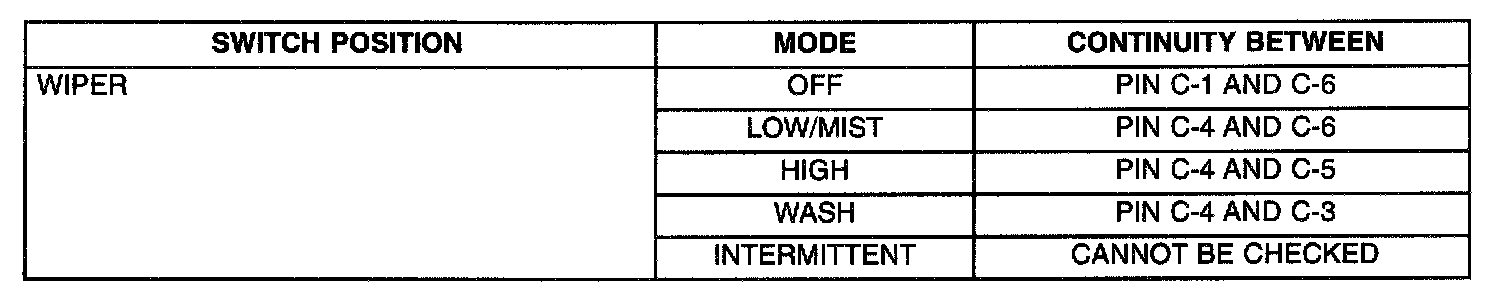

Front Windshield Wiper/Washer Switch Continuity Test:

Windshield Wiper Switch Connector:

To test the switch, refer to the Front Windshield Wiper/Washer Switch Continuity Test table.
