Power Steering Fluid: Service and Repair

FLUID REPLACEMENT

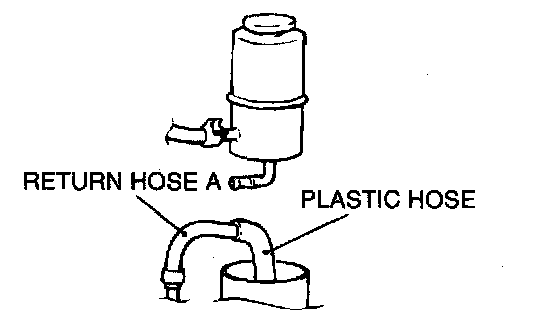

1. Raise and support the front wheels.
2. Disconnect the return hose connection.
3. Connect a vinyl hose to the return hose, and drain the fluid into a container.

CAUTION: Be careful not to position the high-tension cable near the fuel rail.

4. Disconnect the high-tension cable.
5. While operating the starting motor intermittently, turn the steering wheel all the way to the left and right several times to drain all of the fluid.
6. Connect the return hoses securely, and then secure with the clip.

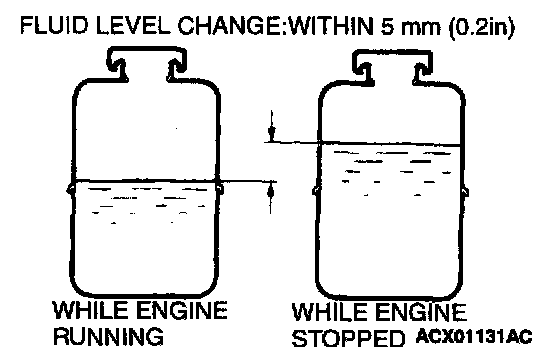

7. Fill the oil reservoir with MOPAR ATF PLUS (Automatic transmission fluid type 7176)/Automatic transmission fluid DEXRON II to the lower position of the filler, and then bleed the air.
