Panel Dimming Output Shorted

Tests 1 - 2:

Tests 3 - 6:

Tests 7 - 10:

Tests 11 - 14:

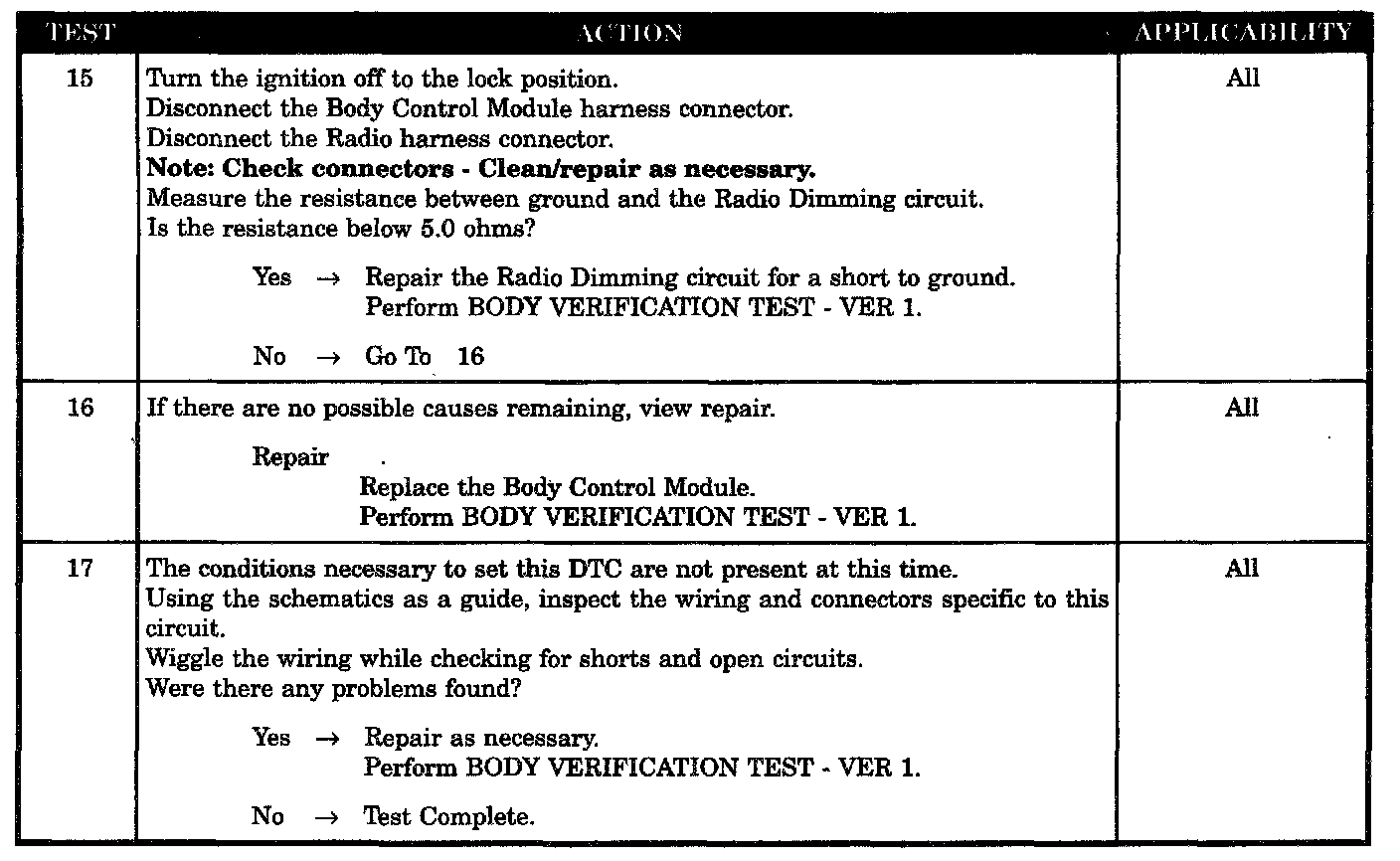

Tests 15 - 17:

SYMPTOM
PANEL DIMMING OUTPUT SHORT

POSSIBLE CAUSES
- Intermittent wiring and connectors
- EMIC dimming circuit short to ground
- Headlamp switch dimming circuit short to ground
- HVAC module dimming circuit short to ground
- I/P multi-function switch dimming circuit short to ground
- Mirror switch dimming circuit short to ground
- Radio dimming circuit short to ground
- Rear blower control switch dimming circuit short to ground
- EMIC
- Headlamp switch
- I/P multi-function switch
- Mirror switch
- Radio
- Rear blower control switch
- Body control module
- HVAC module
