Left Mirror Vertical Sensor Out of Range High

Tests 1 - 2:

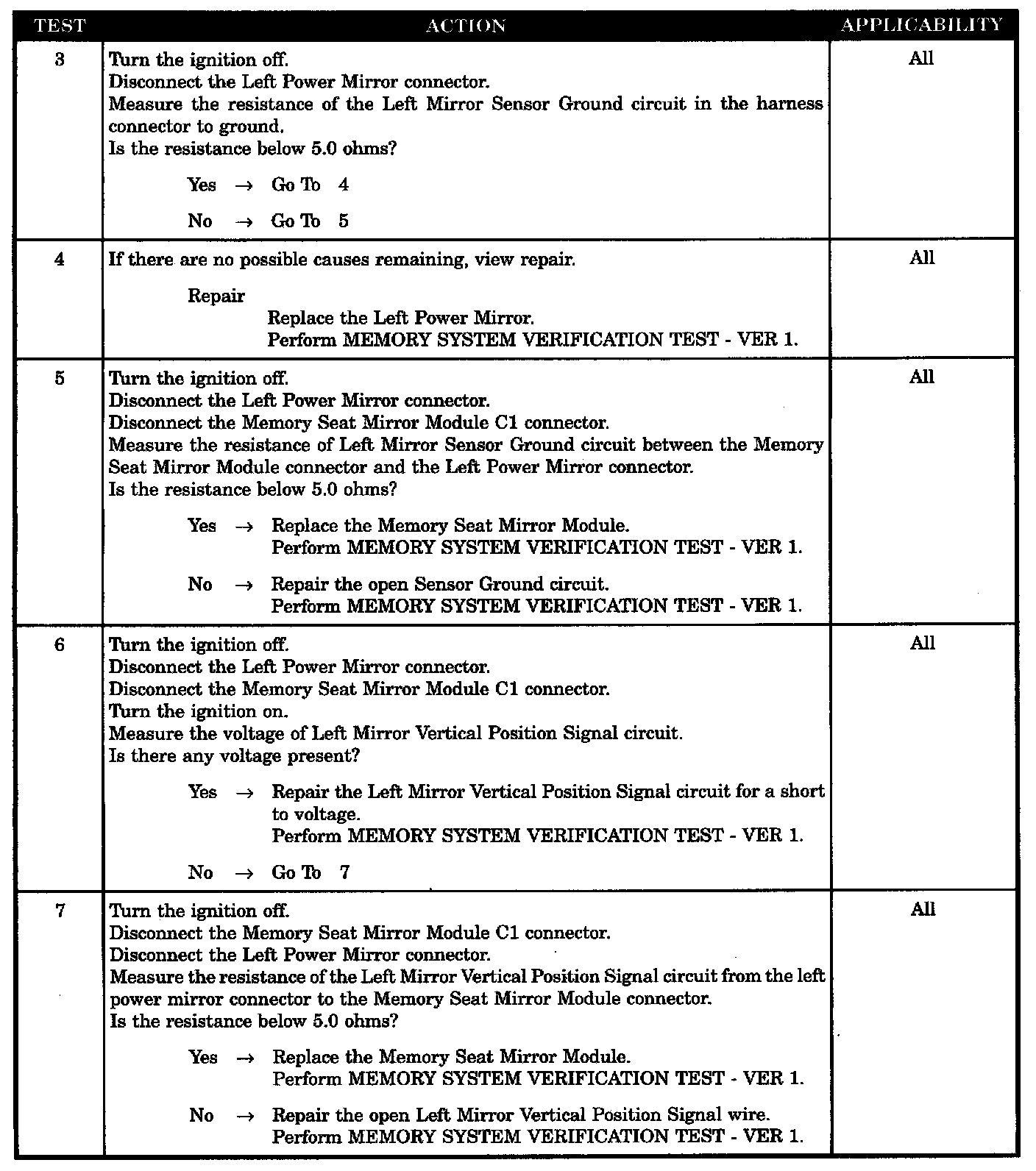

Tests 3 - 7:

SYMPTOM
LEFT MIRROR VERTICAL SENSOR OUT OF RANGE HIGH

WHEN MONITORED
Continuously when the PCI bus is active.

SET CONDITION
This code is set when the mirror sensor feedback to the Memory Seat Mirror Module is greater than the mirror out of range high value stored in EEPROM. Code will remain for 50 ignition cycles.

POSSIBLE CAUSES
- Left mirror sensor ground wire open
- Left mirror vertical position wire shorted to voltage
- Stored diagnostic trouble code
- Left mirror vertical position signal open
- Left power mirror
- Memory seat mirror module sensor ground
- Memory seat mirror module vertical position signal
