Incomplete Latch Release - No Current

Tests 1 - 2:

Tests 3 - 7:

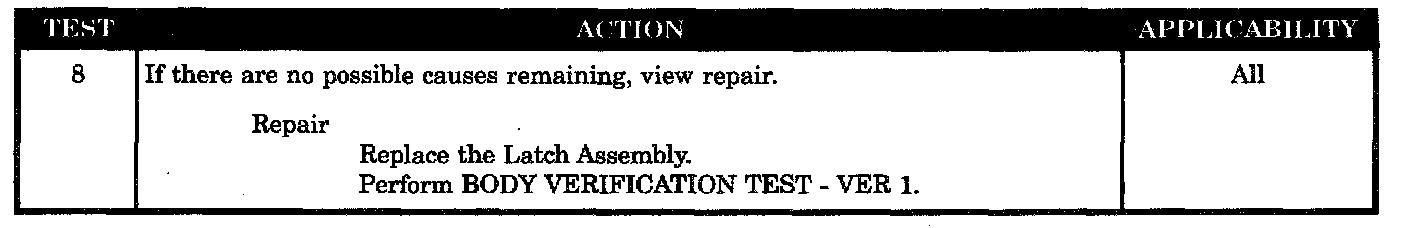

Test 8:

SYMPTOM
INCOMPLETE LATCH RELEASE - NO CURRENT

WHEN MONITORED
Whenever the power liftgate module is awake and performing a power operation.

SET CONDITION
When the release operation was not completed in 4 seconds and current did not build up to the stall level, this code will set.

POSSIBLE CAUSES
- DTC present
- Liftgate latch cinch/release driver circuit short to ground
- Liftgate latch cinch/release driver circuit short to harness ground
- Latch cinch driver wire open
- Latch release driver wire open
- Latch assembly
- Power liftgate module
