Town & Country LWB FWD V6-3.8L VIN L
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Sensors and Switches - Starting and Charging
>>
Ignition Switch
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

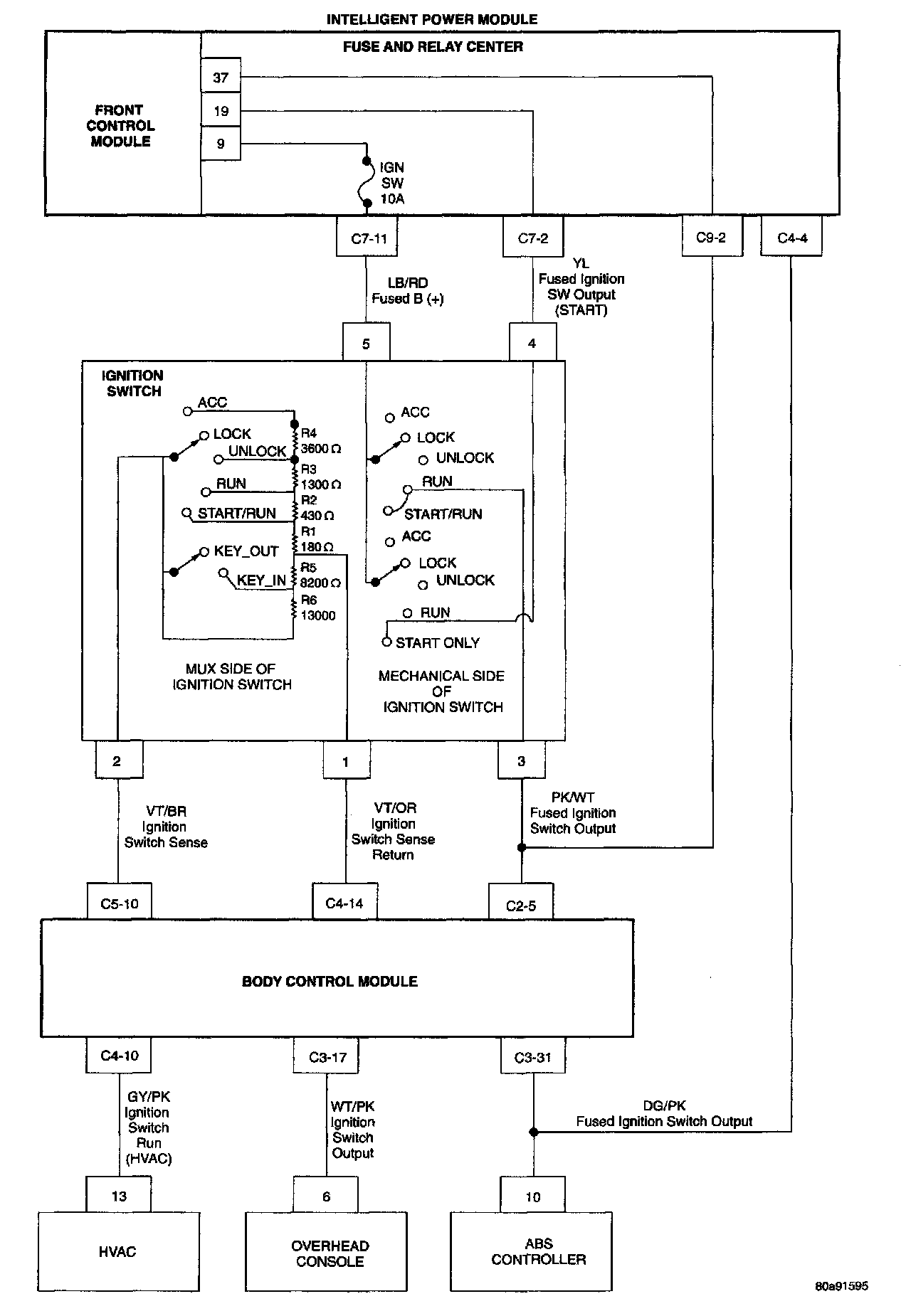

Ignition Switch:
