Cruise Control Vacuum Reservoir: Service and Repair

REMOVAL

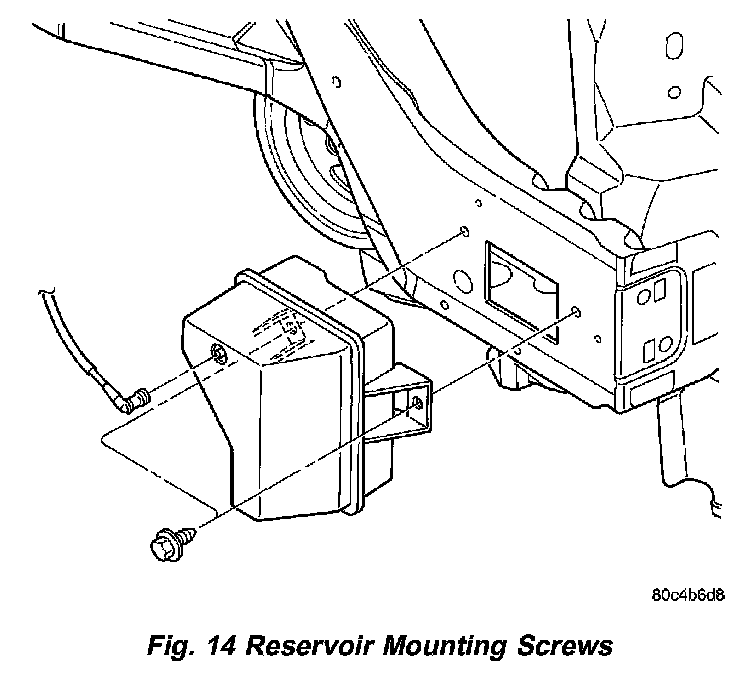

Fig. 14 Reservoir Mounting Screws:

The vacuum reservoir is located in the right front fender well on the frame rail. It is made of plastic.
1. Remove the air cleaner lid, disconnect the inlet air temperature sensor and makeup air hose.
2. Remove the negative battery cable.
3. Raise vehicle and support.
4. Remove the right front wheel.

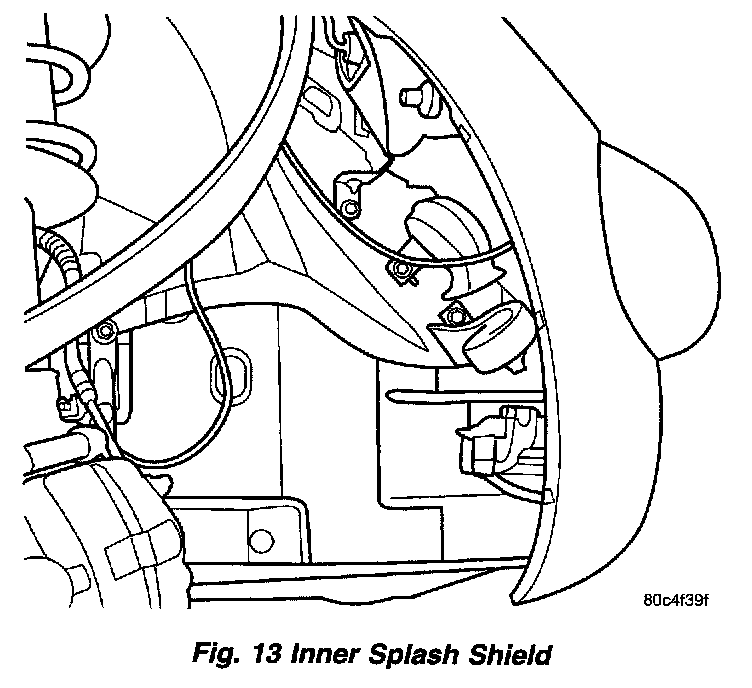

Fig.13 Inner Splash Shield:

5. Remove the front half of the inner splash shield and relocate rearward.
6. Remove the 2 screws from vacuum reservoir.

Fig.3 Vacuum Reservoir:

7. Disconnect vacuum hose from reservoir.

INSTALLATION
The vacuum reservoir is located in the right front fender well on the frame rail. It is made of plastic.
1. Connect hoses to reservoir.
2. Install reservoir and tighten screws to 5 Nm (45 ins. lbs.)).
3. Install the inner splash shield.
4. Lower vehicle.
5. Install the negative battery cable.
6. Install the air cleaner lid, connect the inlet air temperature sensor and makeup air hose.
