Air Bag
Air Bag
C305 (Driver):
C305 (Passenger):
C306 (Driver):
C306 (Passenger):

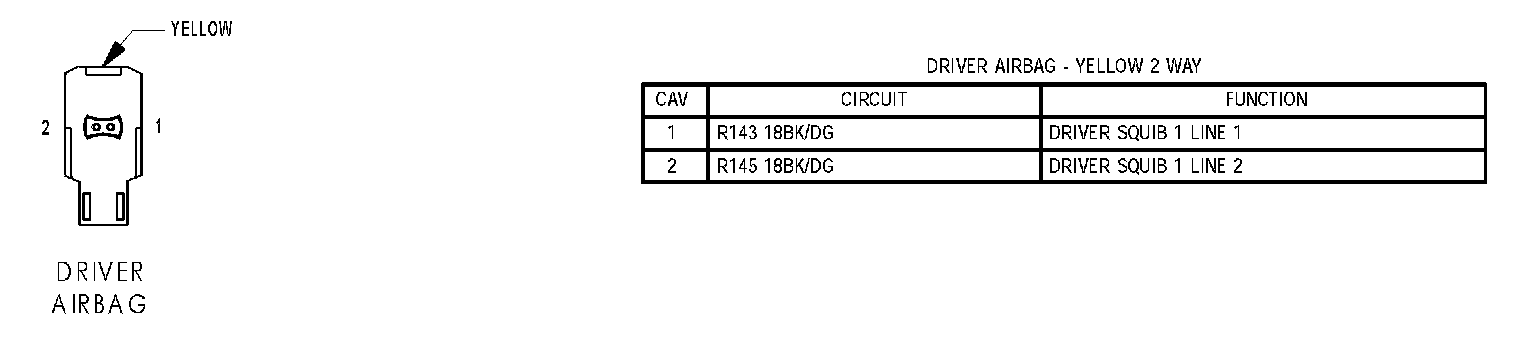

Driver Airbag:

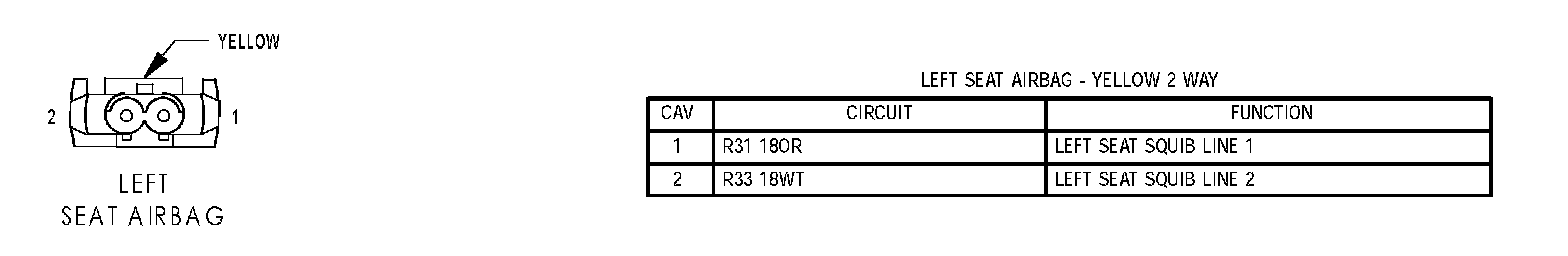

Left Seat Airbag:

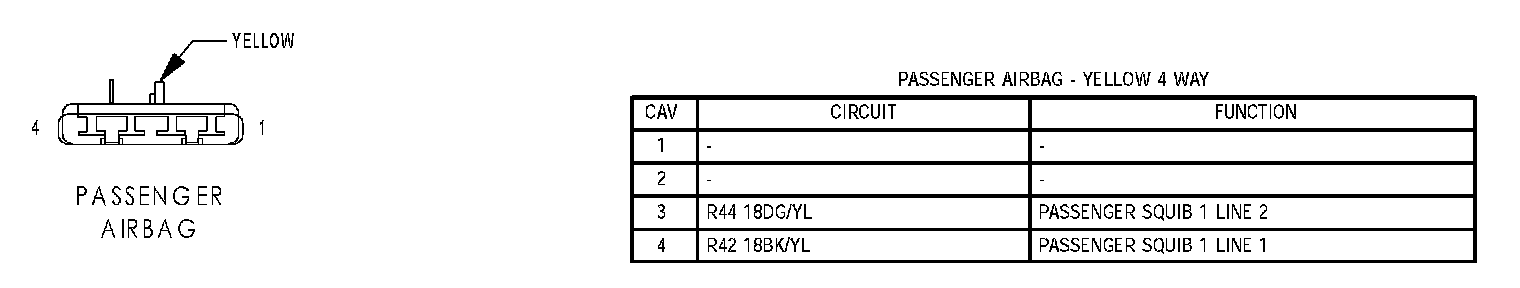

Passenger Airbag:

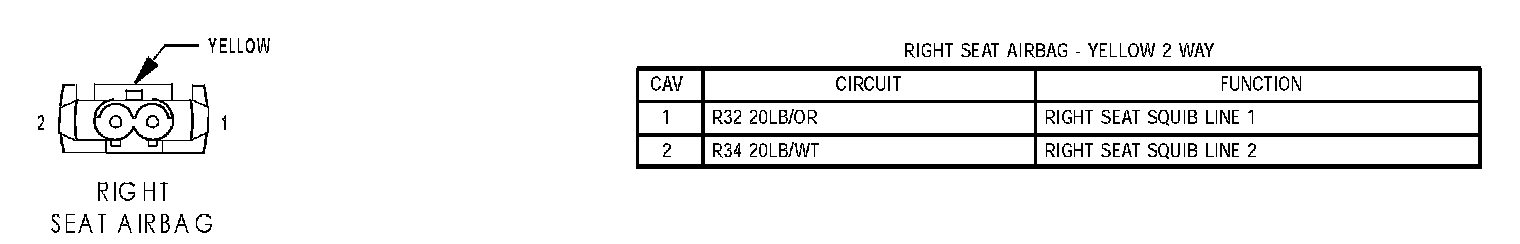

Right Seat Airbag:
