Home
>>
Chrysler
>>
2002
>>
PT Cruiser L4-2.4L VIN B
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connector Views By Connector Number
>>
C108
C108

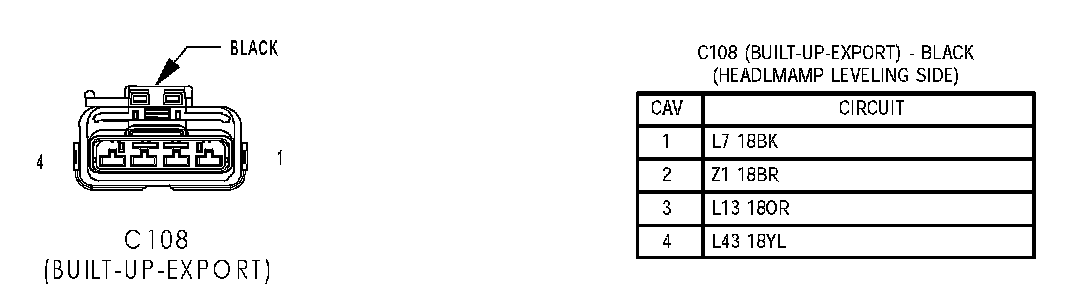

C108 (Built-Up-Export):

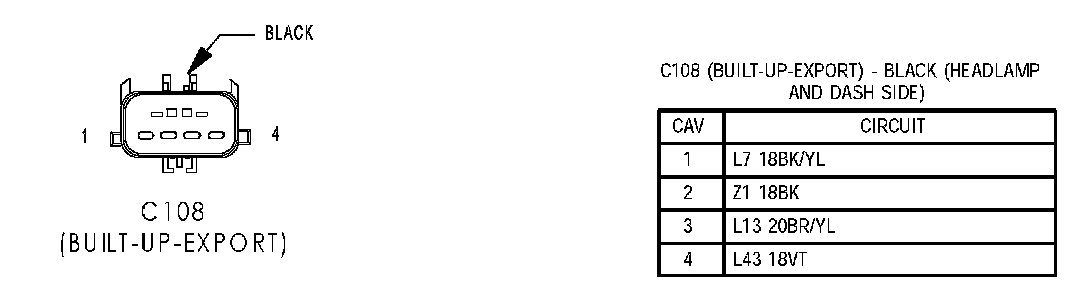

C108 (Built-Up-Export):
