Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chrysler
>>
2002
>>
PT Cruiser L4-2.4L VIN B
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Connector Views By Connector Number
>>

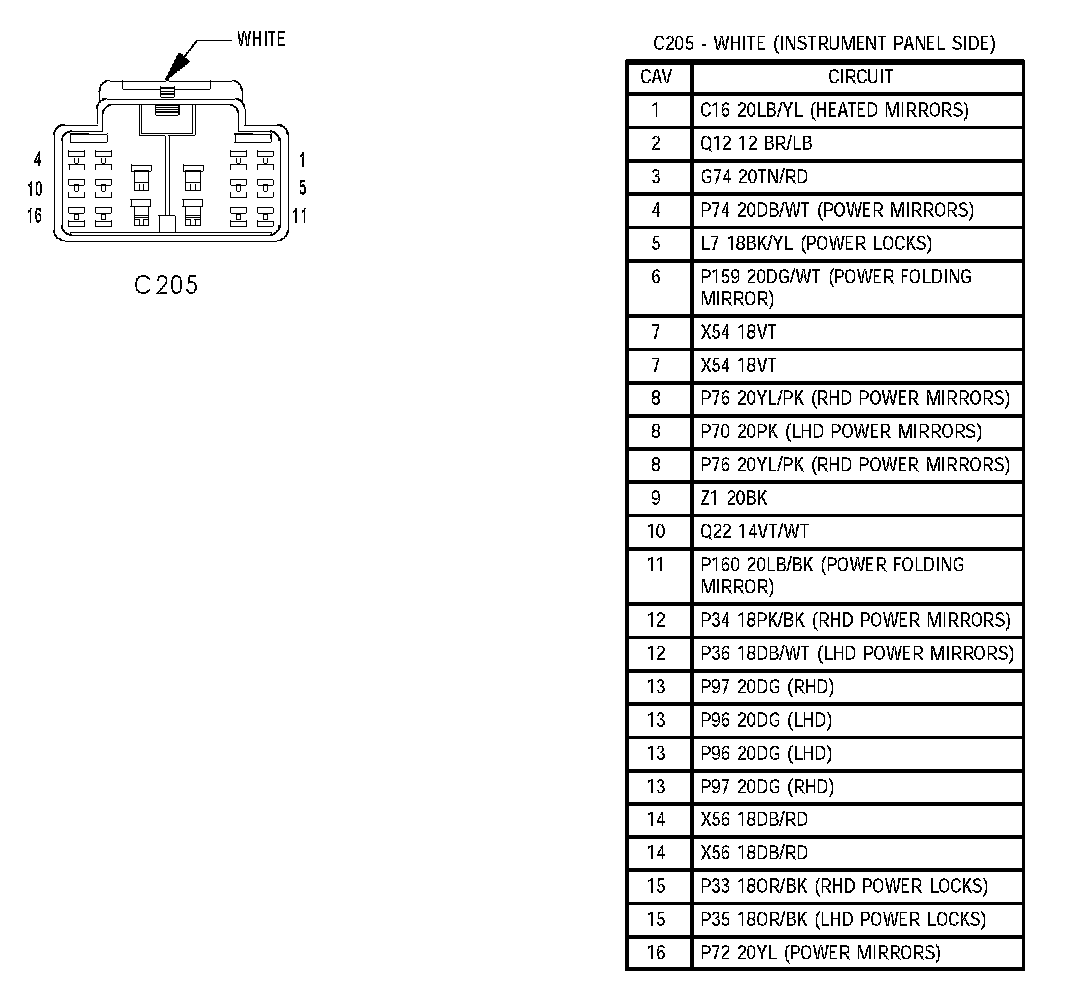

C205
C205
C205 (Built-Up-Export):
C205 (Except Built-Up-Export):
C205:
