Operation CHARM
: Car repair manuals for everyone.
Home
>>
Chrysler
>>
2002
>>
PT Cruiser L4-2.4L VIN B
>>
Repair and Diagnosis
>>
Diagrams
>>
Connector Views
>>
Door Switch
Door Switch

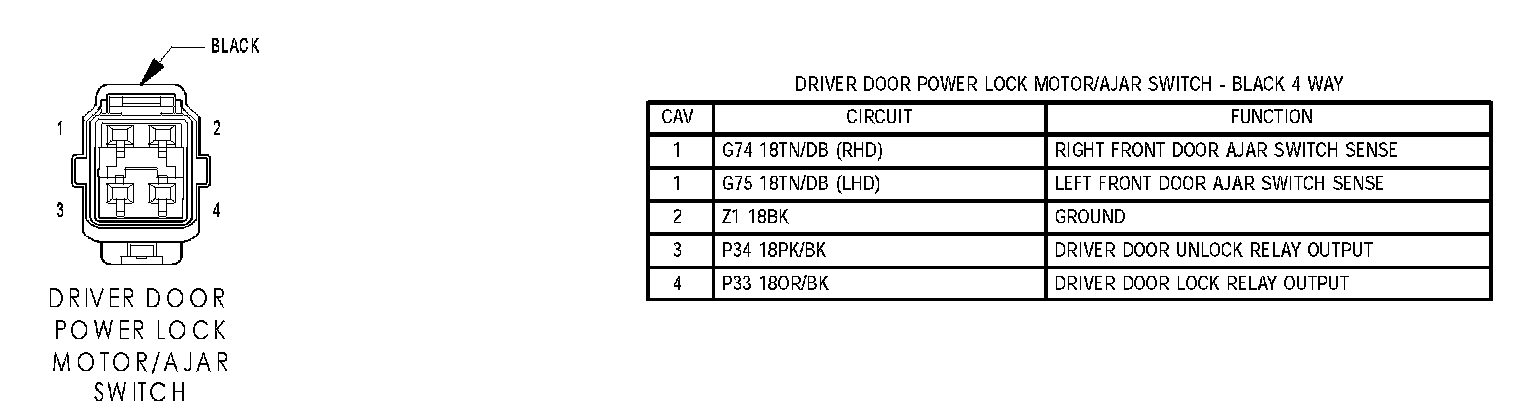

Driver Door Power Lock Motor/Ajar Switch:

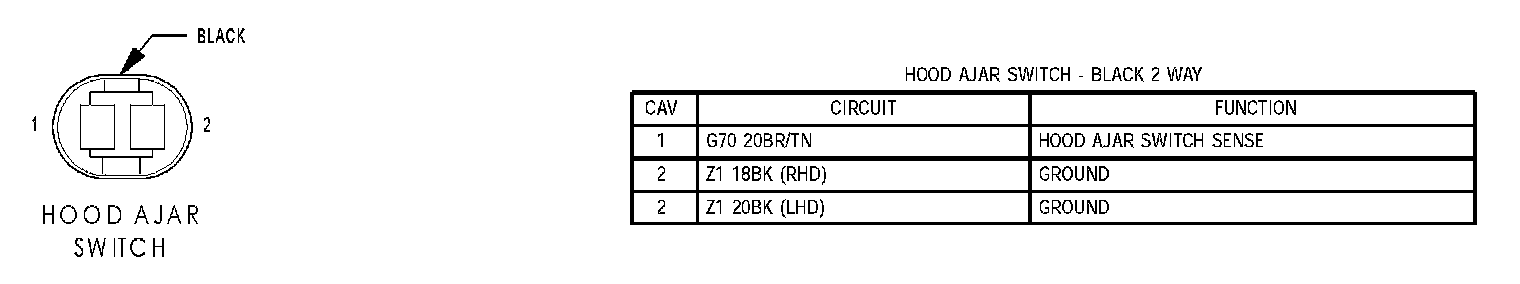

Hood Ajar Switch:
Passenger Door Power Lock Motor/Ajar Switch:
