Headlamp Control Module

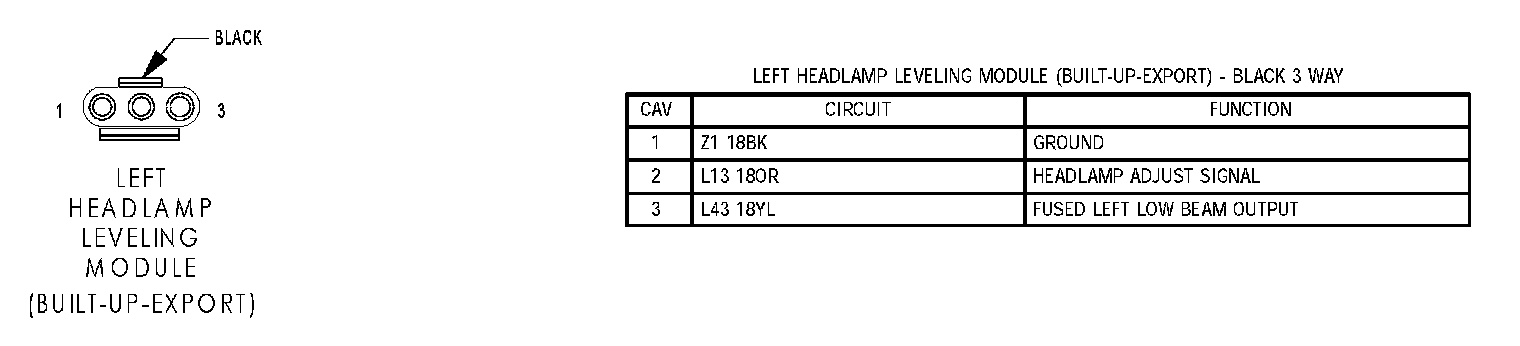

Left Headlamp Leveling Module (Built-Up-Export):

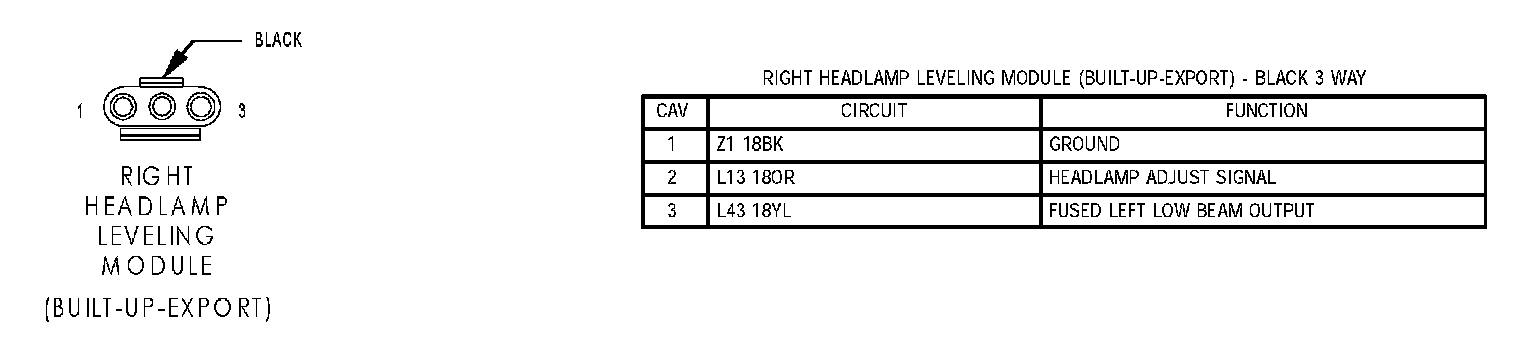

Right Headlamp Leveling Module (Built-Up-Export):
