Power Window Switch

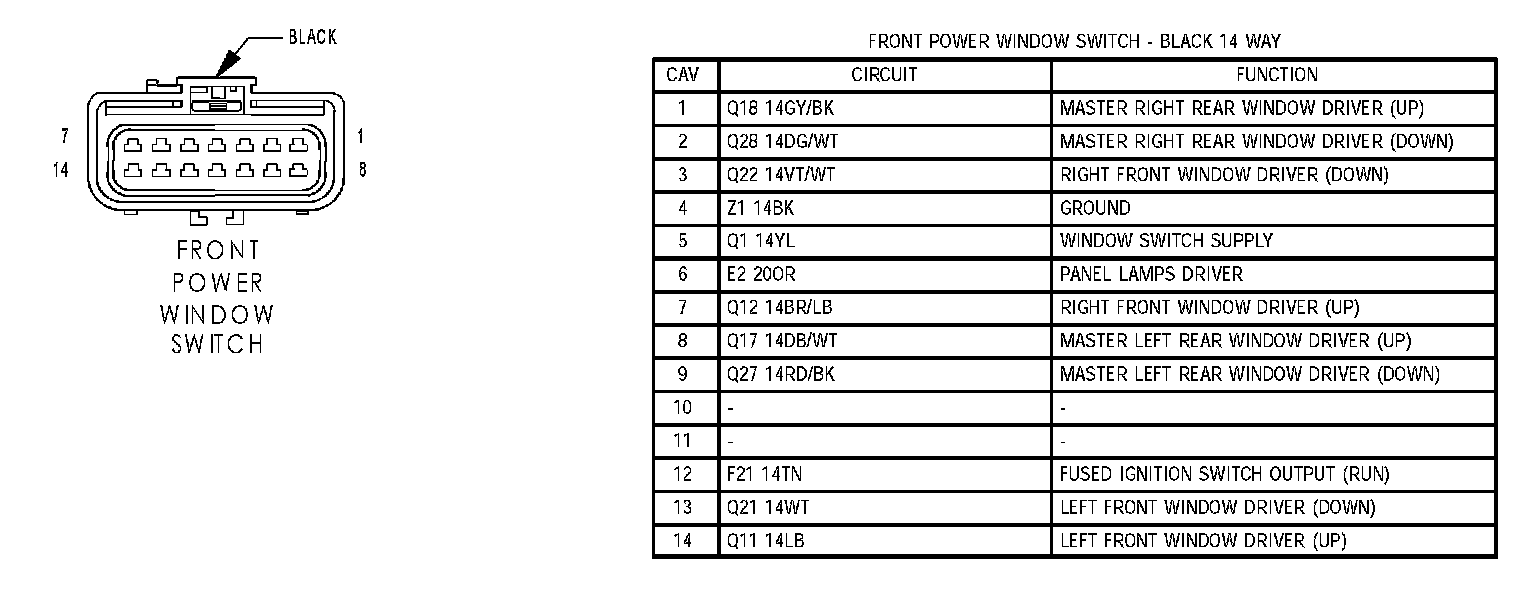

Front Power Window Switch:

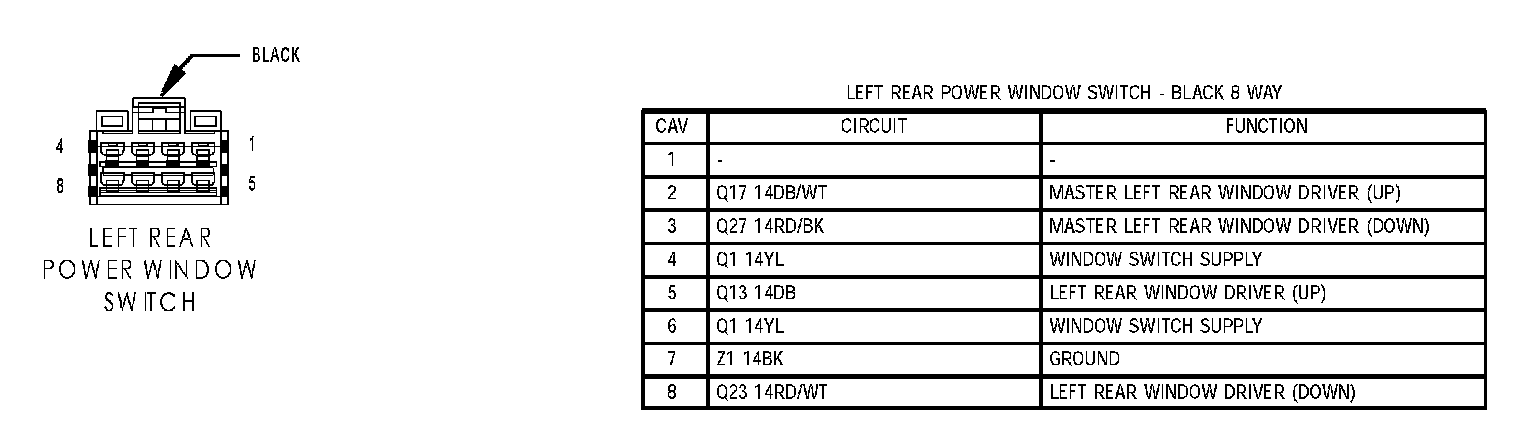

Left Rear Power Window Switch:

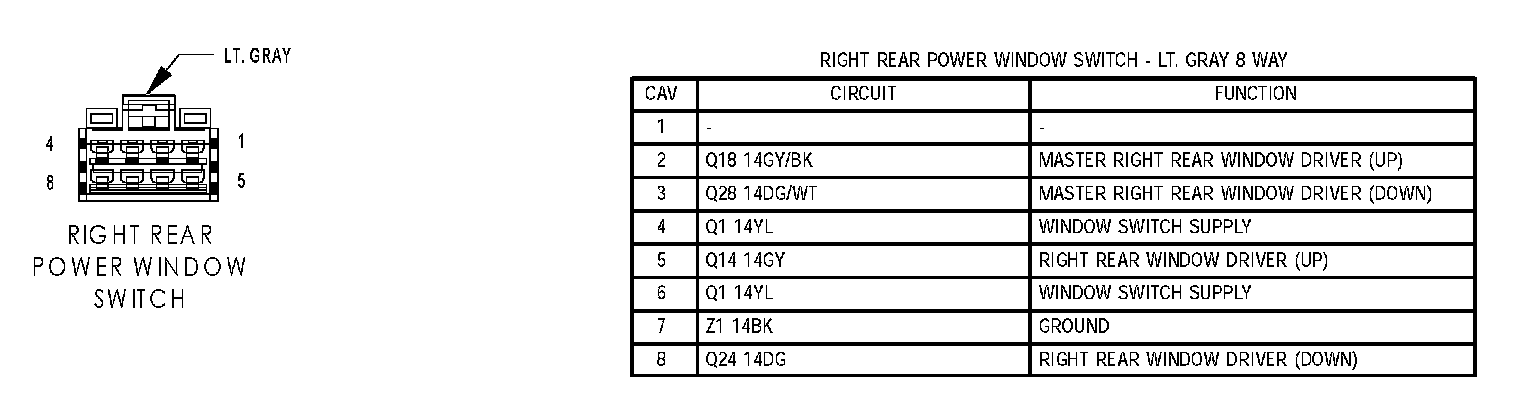

Right Rear Power Window Switch:
