PT Cruiser L4-2.4L VIN B
>>
Repair and Diagnosis
>>
Locations
>>

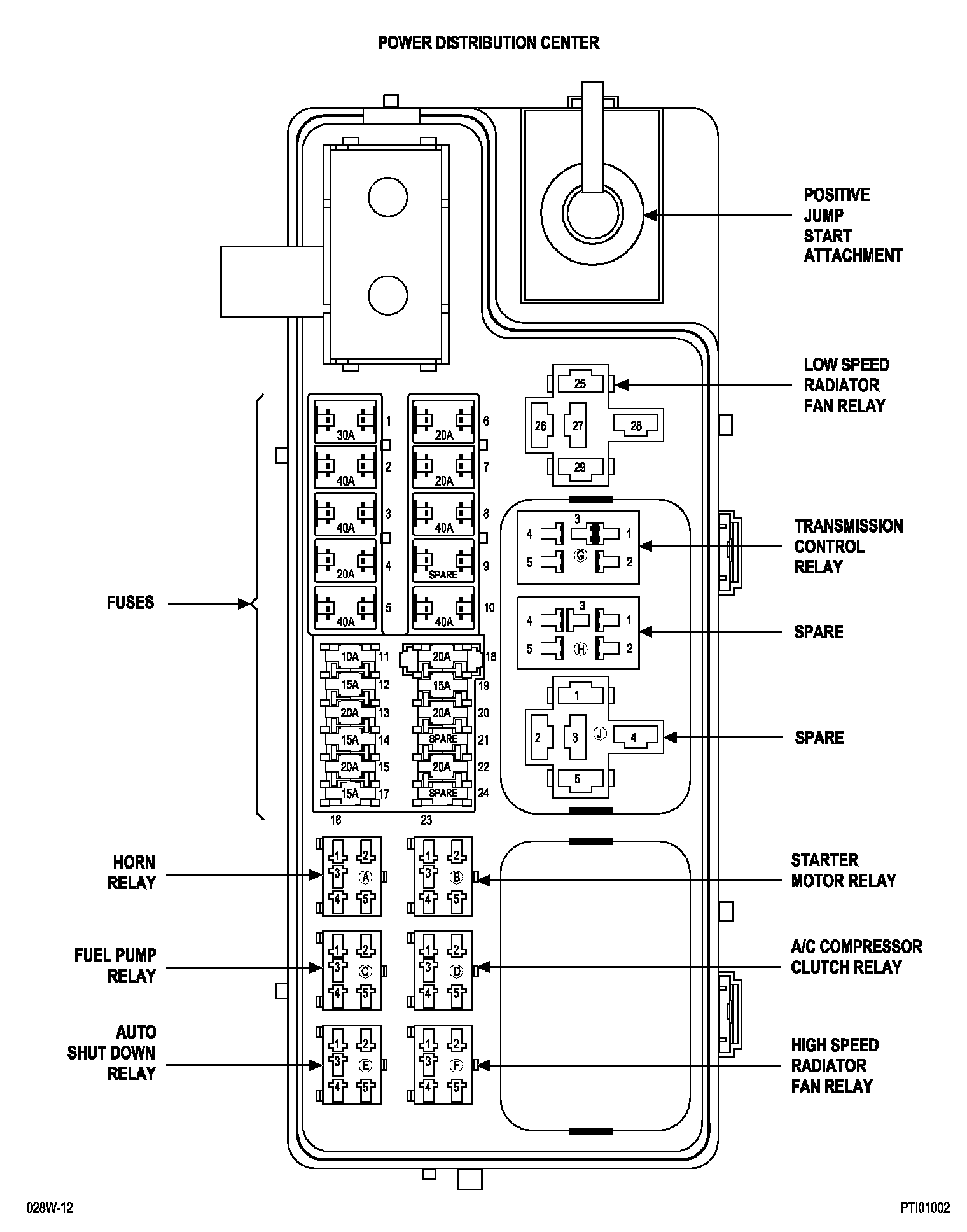

Fuse and Fusible Link Locations
>>
Power Distribution
Power Distribution
8w-10-2:
