Home
>>
Chrysler
>>
2002
>>
PT Cruiser L4-2.4L VIN B
>>
Repair and Diagnosis
>>
Locations
>>
Splice Locations
>>
Figure 3
Figure 3

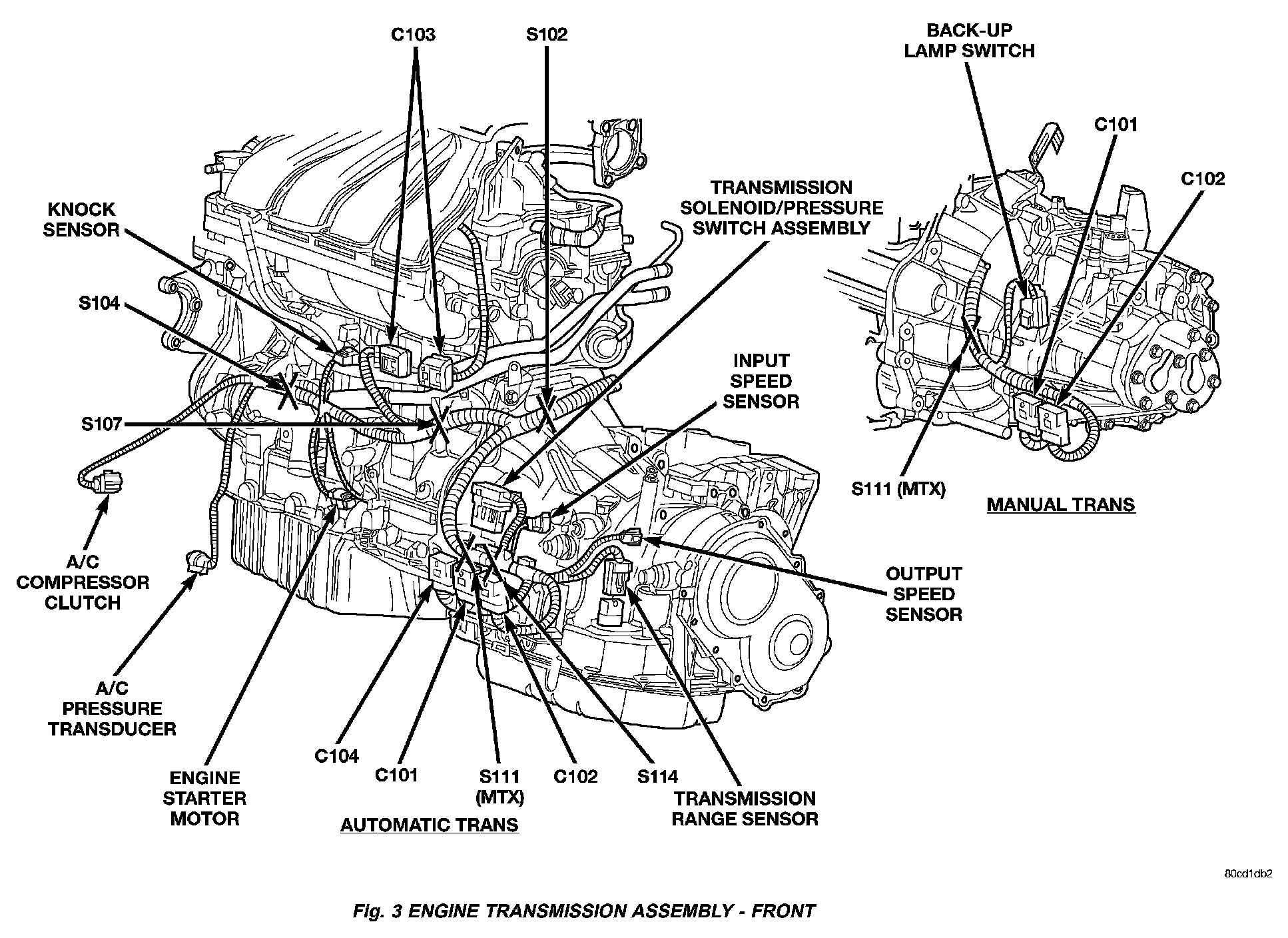

Fig. 3 Engine Transmission Assembly - Front (2.0/2.4L):
