Checking the MAP Sensor Operation

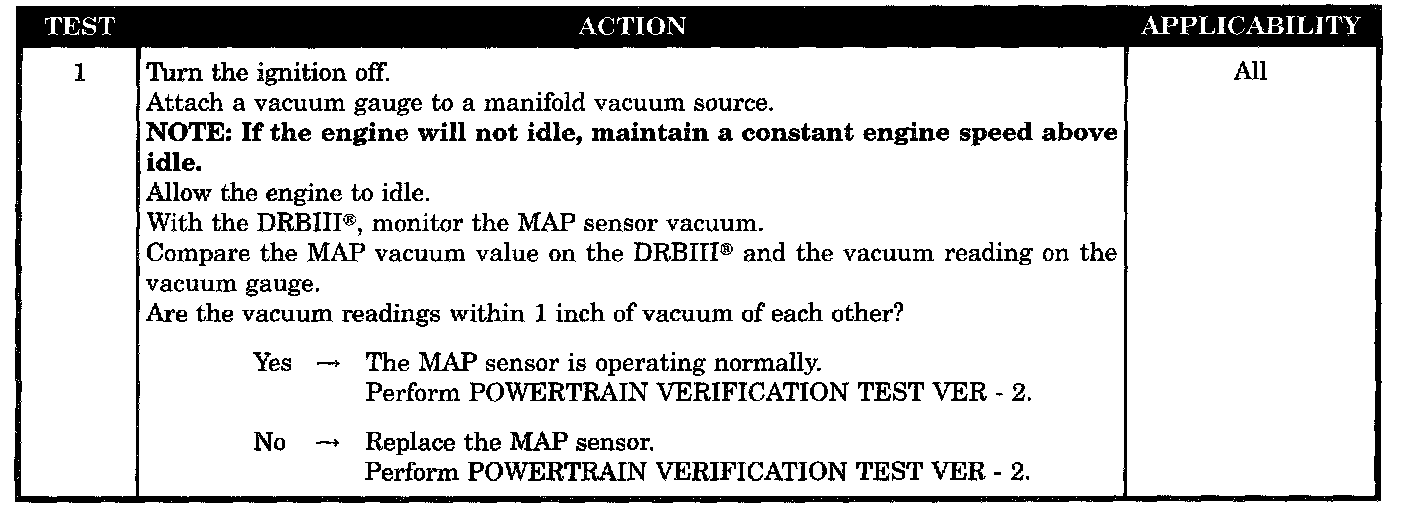

Test 1:




SYMPTOM
CHECKING MAP SENSOR

POSSIBLE CAUSES
- MAP Sensor Operation MAP Sensor
