System Specifications




41TE - Automatic Transmission

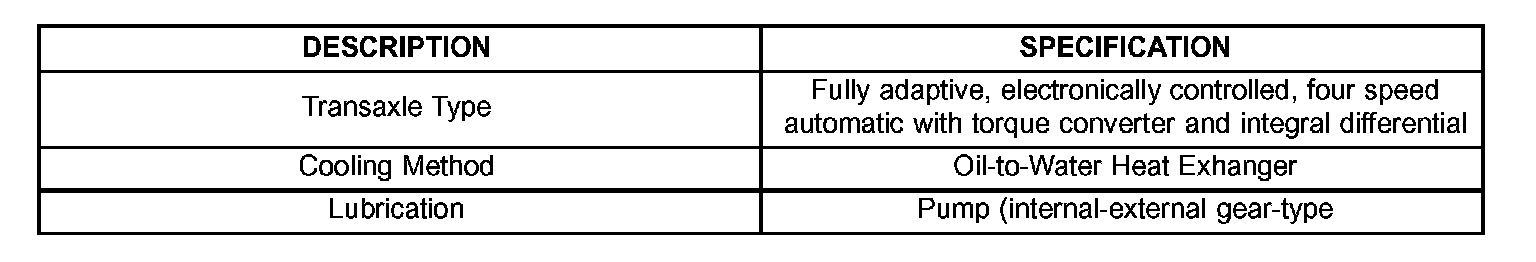

General Specifications:

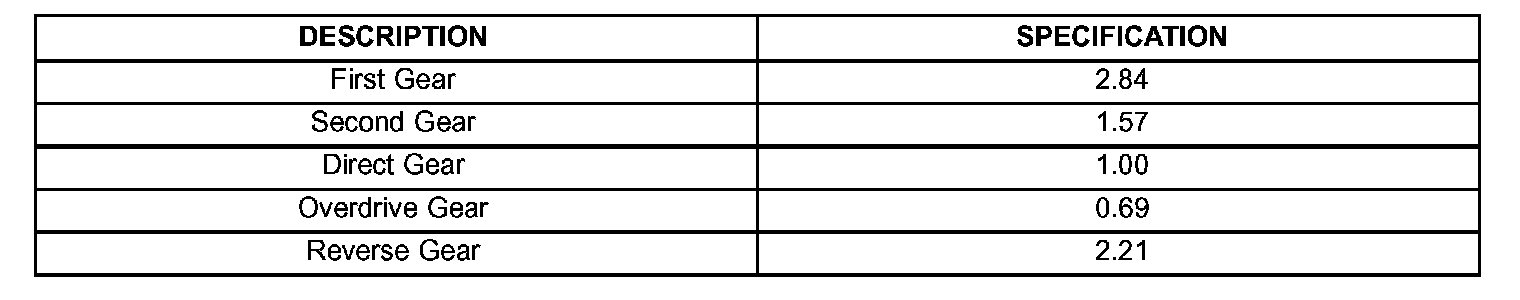

Gear Ratios:

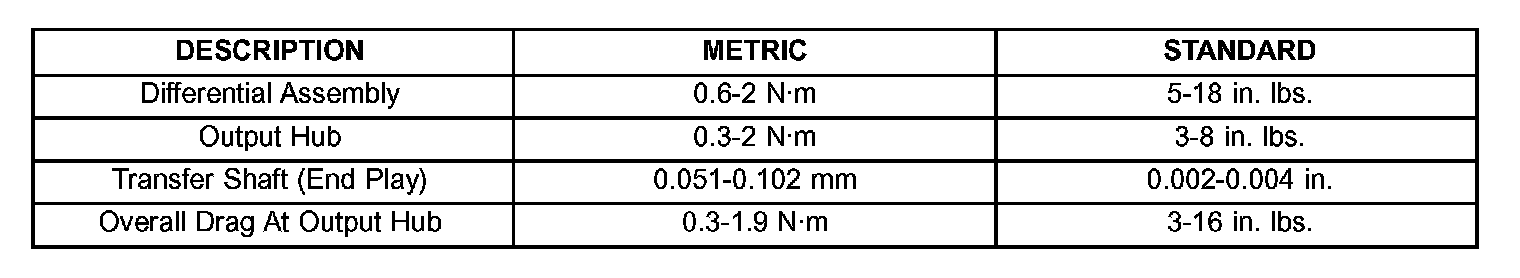

Bearing Settings (End Play & Turning Torque):

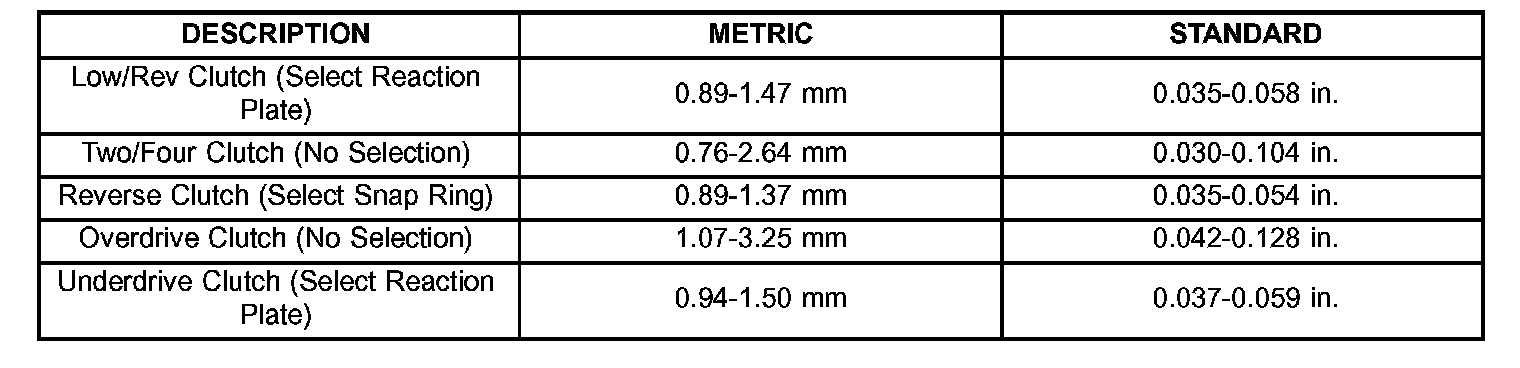

Clutch Clearances:

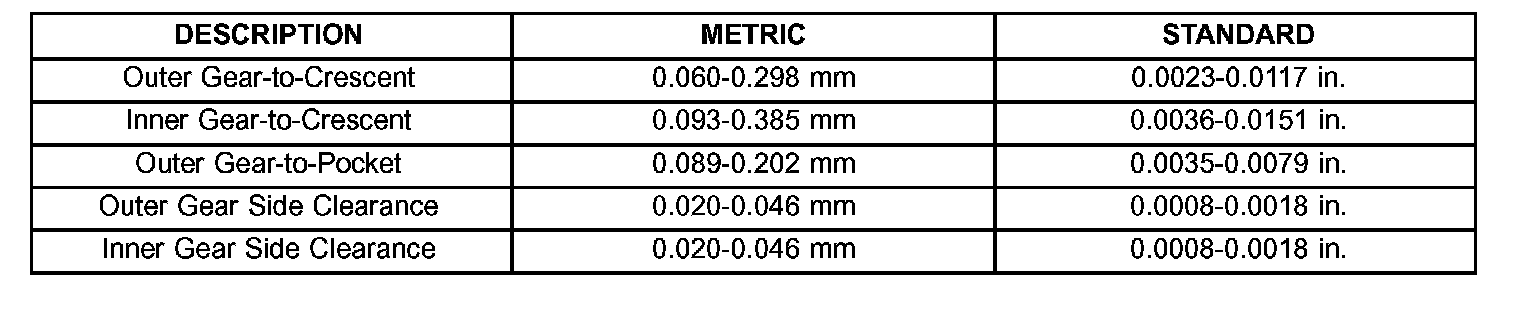

Oil Pump Clearances:

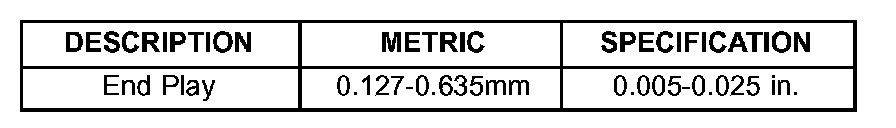

Input Shaft:

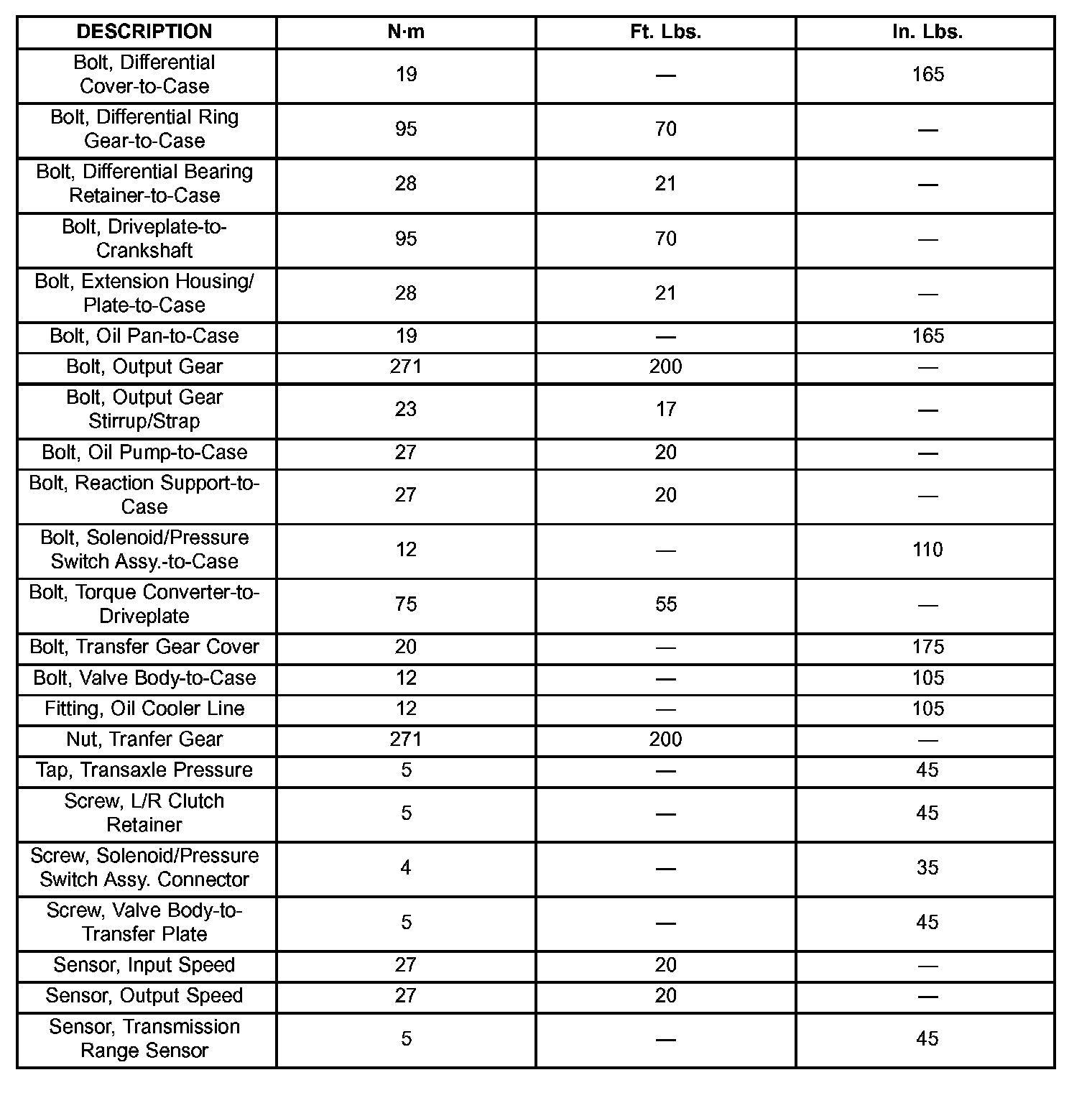

A/T - Torque Specifications:
