Power Steering Fluid: Testing and Inspection

FLUID
STANDARD PROCEDURE - POWER STEERING FLUID LEVEL CHECKING

WARNING: FLUID LEVEL SHOULD BE CHECKED WITH ENGINE OFF TO PREVENT INJURY FROM MOVING PARTS.

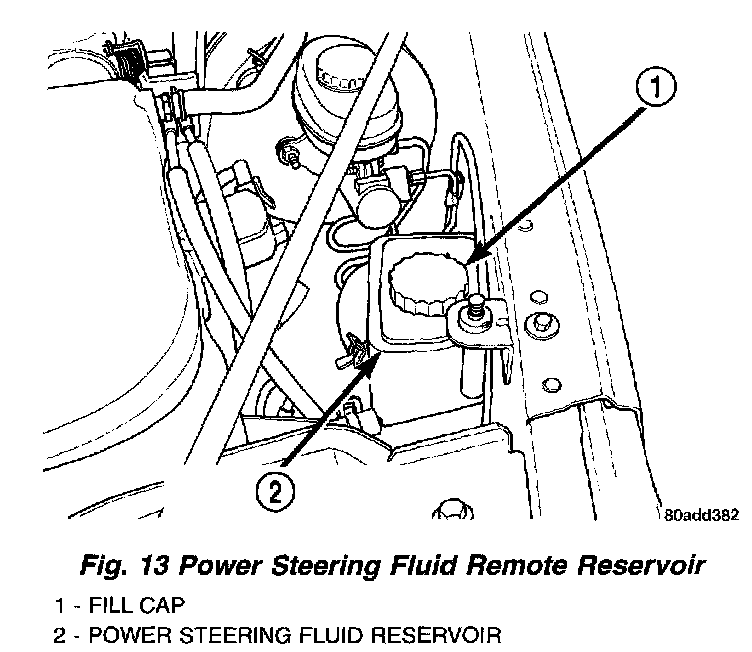

Wipe power steering fluid reservoir and filler cap free of dirt. Then check fluid level. The dipstick should indicate COLD when fluid is at normal ambient temperature, approximately 21°C to 27°C (70°F to 80°F). Use only Mopar ATF+4 Automatic Transmission Fluid (MS-9602) in the power steering system
