Crankshaft Position Sensor: Locations

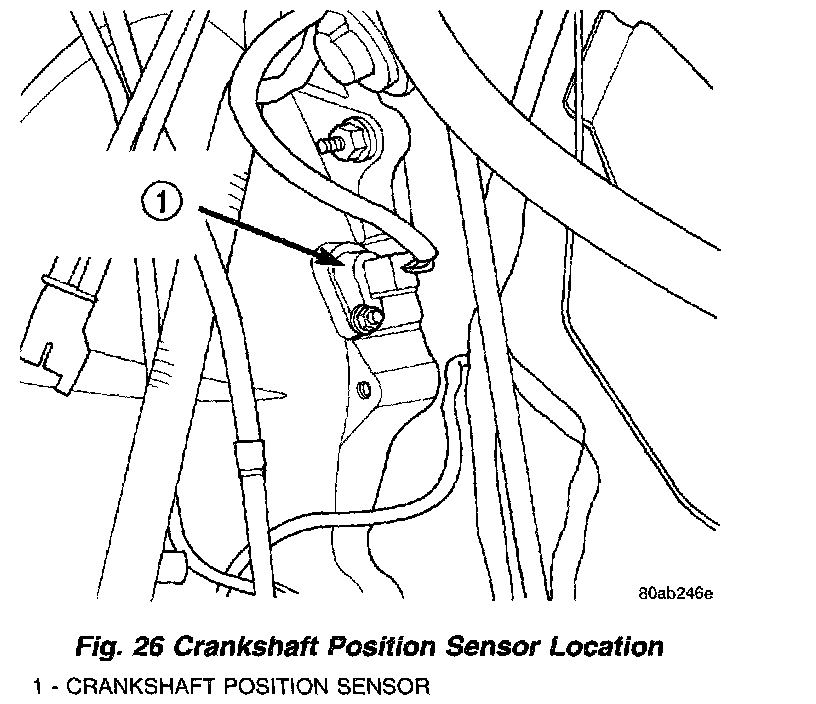

Fig. 26 Crankshaft Position Sensor Location:

The crankshaft sensor is located on the passengers side of the transmission housing, above the differential housing .
