Oxygen Sensor
>>
Locations
>>
Engine Compartment/Exhaust System
Engine Compartment/Exhaust System

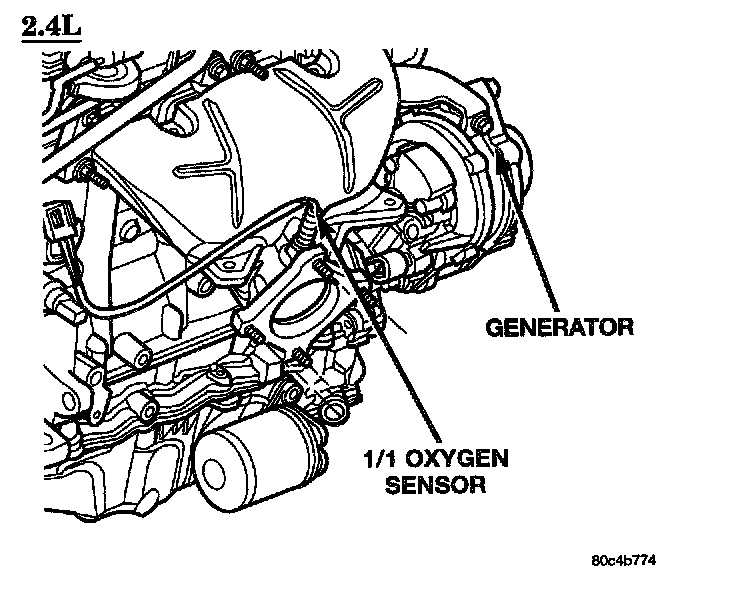

2.4L:

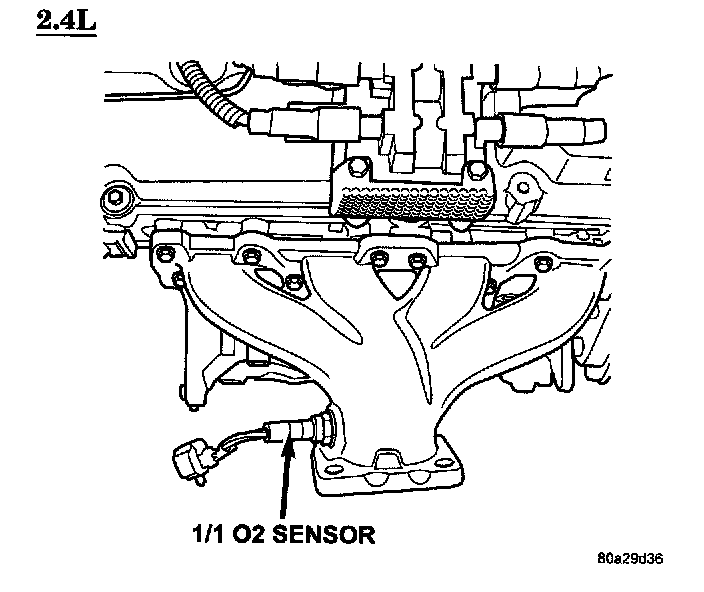

2.4L:
The O(2)S is located on the side of the catalytic converter.
