Boost Solenoid: Description and Operation

DESCRIPTION

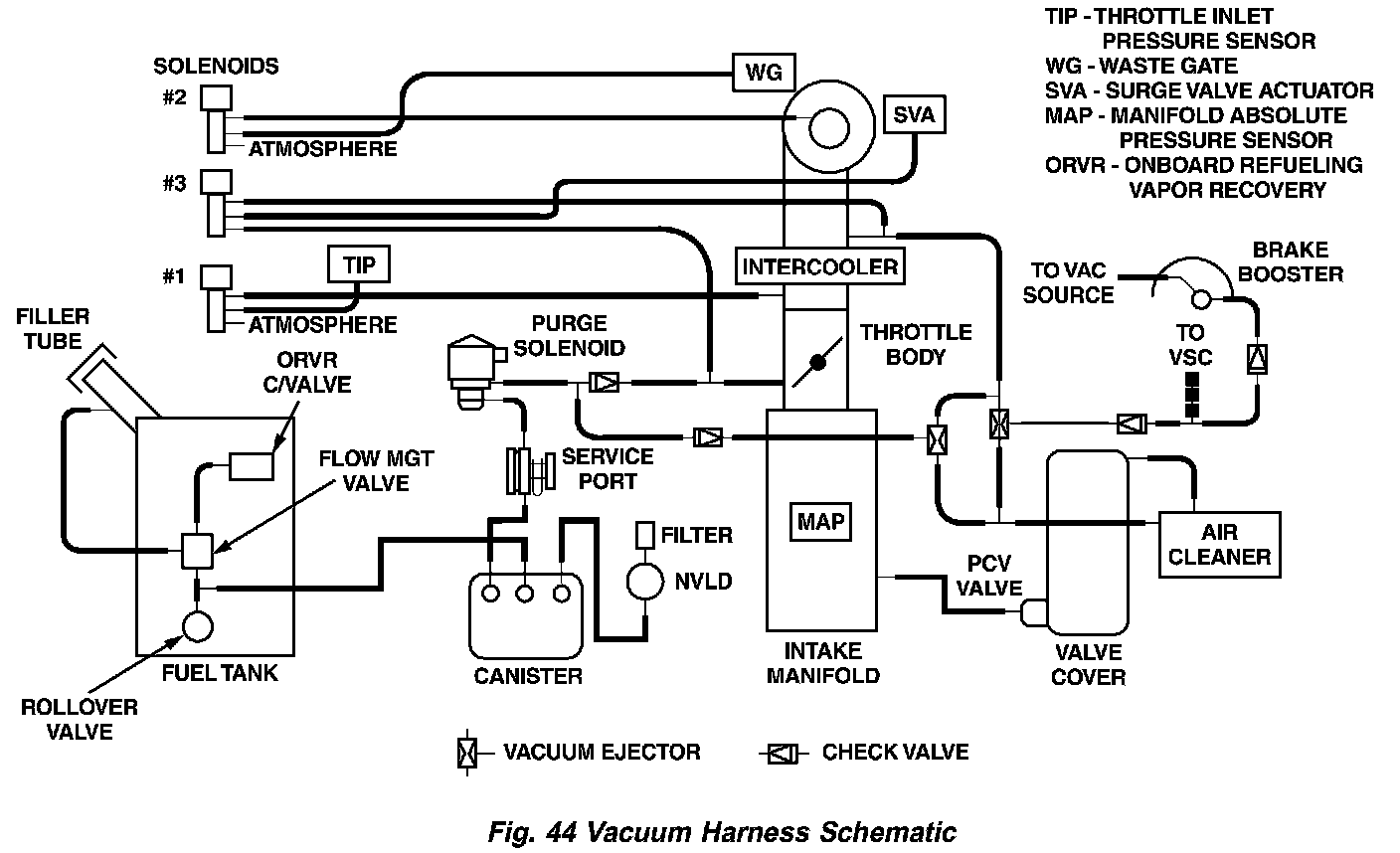

NOTE: Refer to (Fig. 44) and (Fig. 45) for component location and vacuum harness routing.

Turbocharged vehicles are equipped with three solenoids that are PCM controlled. They are mounted to the right shock tower. A vacuum harness connects the solenoids to their respective component.
^ Wastegate Actuator Solenoid
^ Surge Valve Actuator Solenoid
^ Throttle Inlet Pressure (TIP) Solenoid
