Turn Signal Lamp

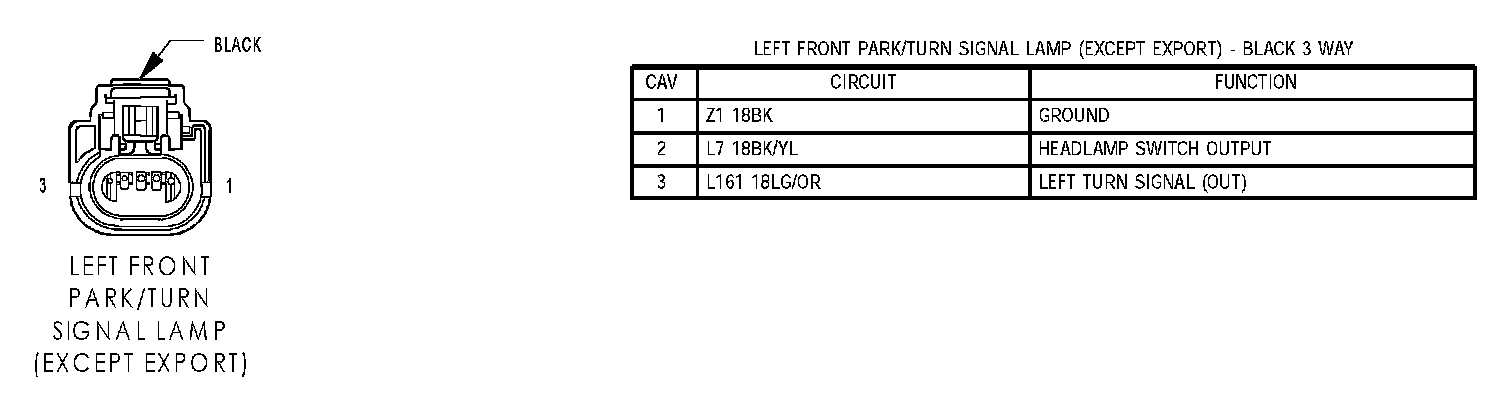

Left Front Park/Turn Signal Lamp (Except Export):

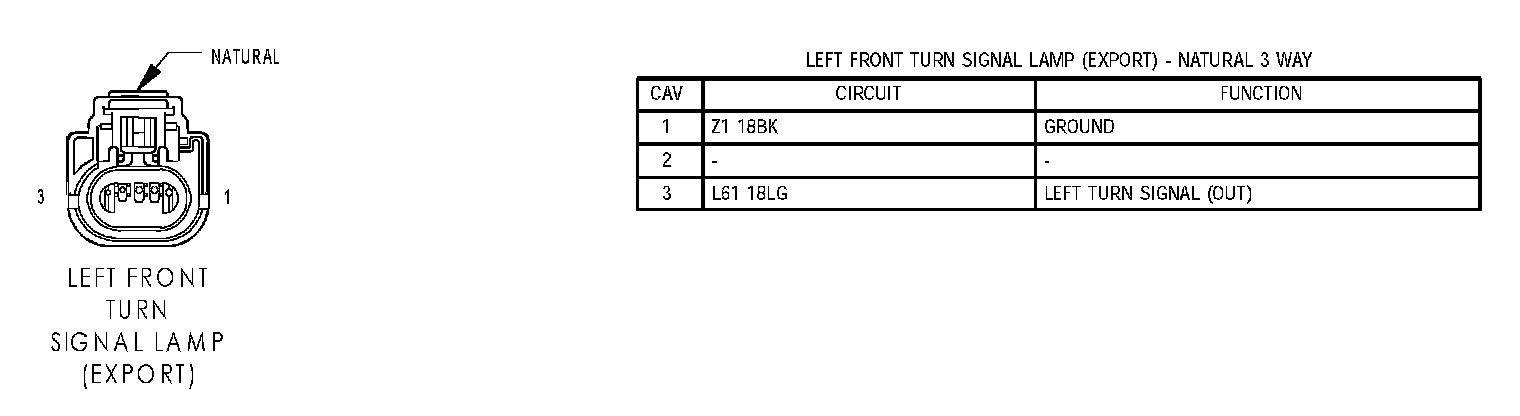

Left Front Turn Signal Lamp (Export):






Left Rear Turn Signal Lamp:

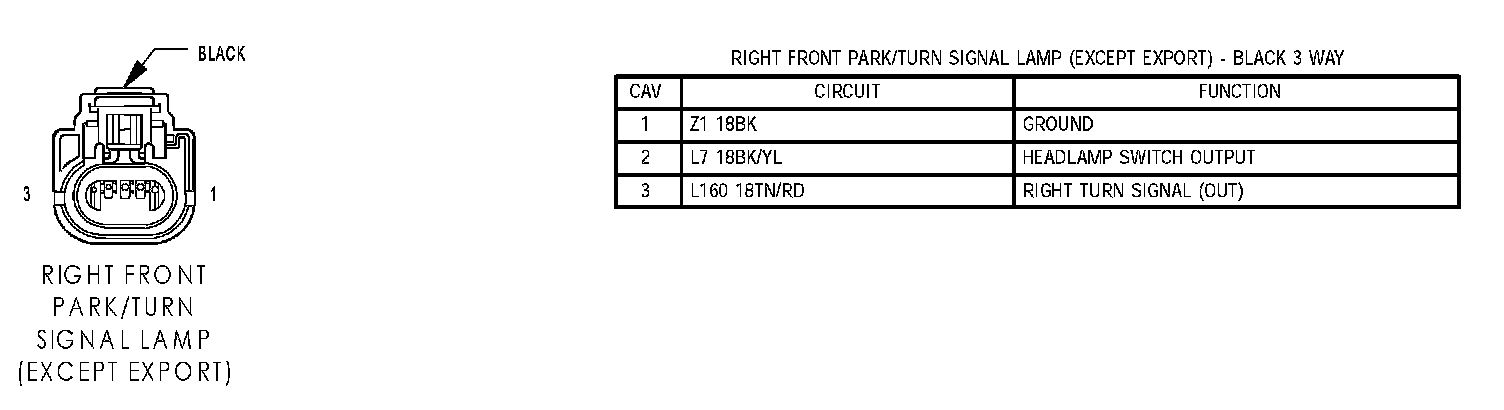

Right Front Park/Turn Signal Lamp (Except Export):

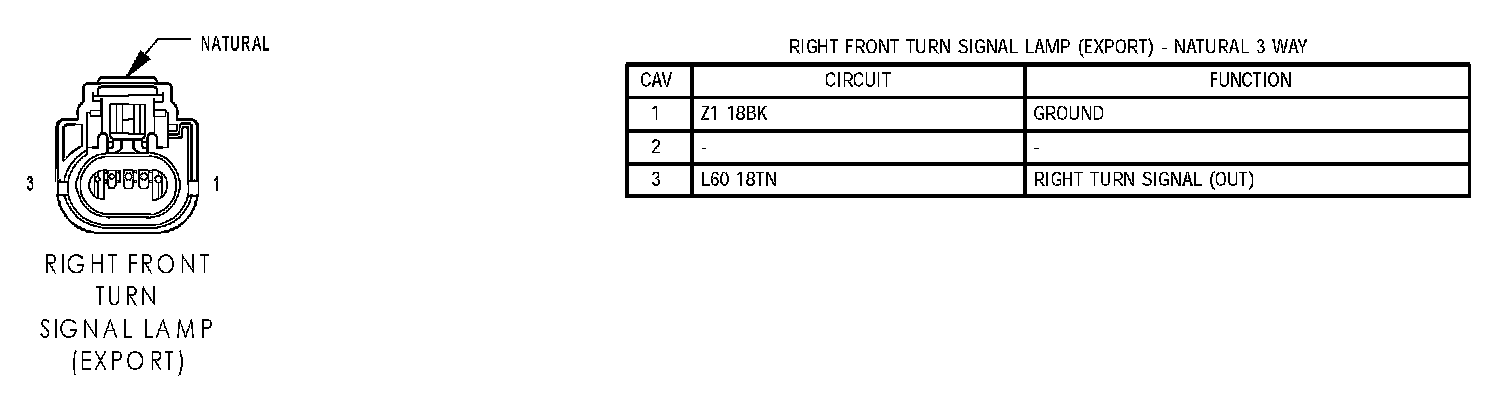

Right Front Turn Signal Lamp (Export):

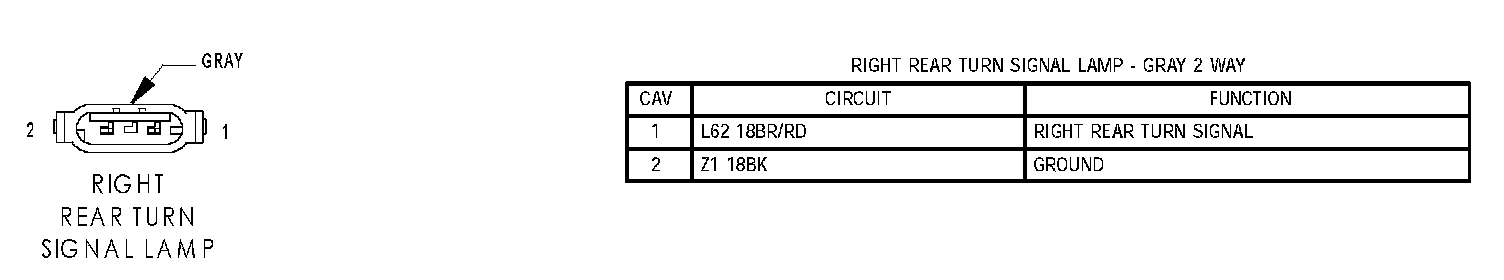

Right Rear Turn Signal Lamp:
