Liftgate Lock Motor Fails to Lock or Unlock

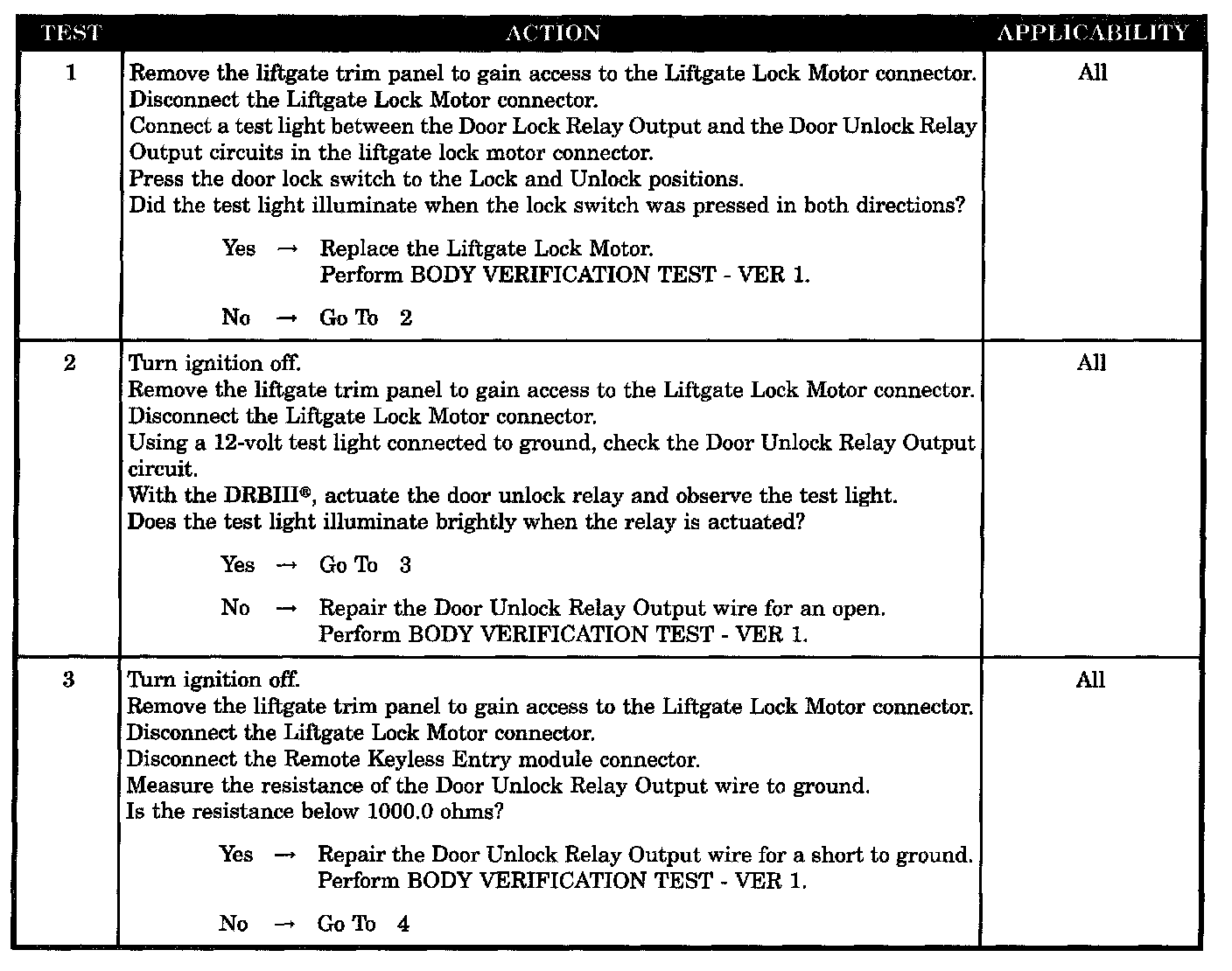

Test 1 - 3:

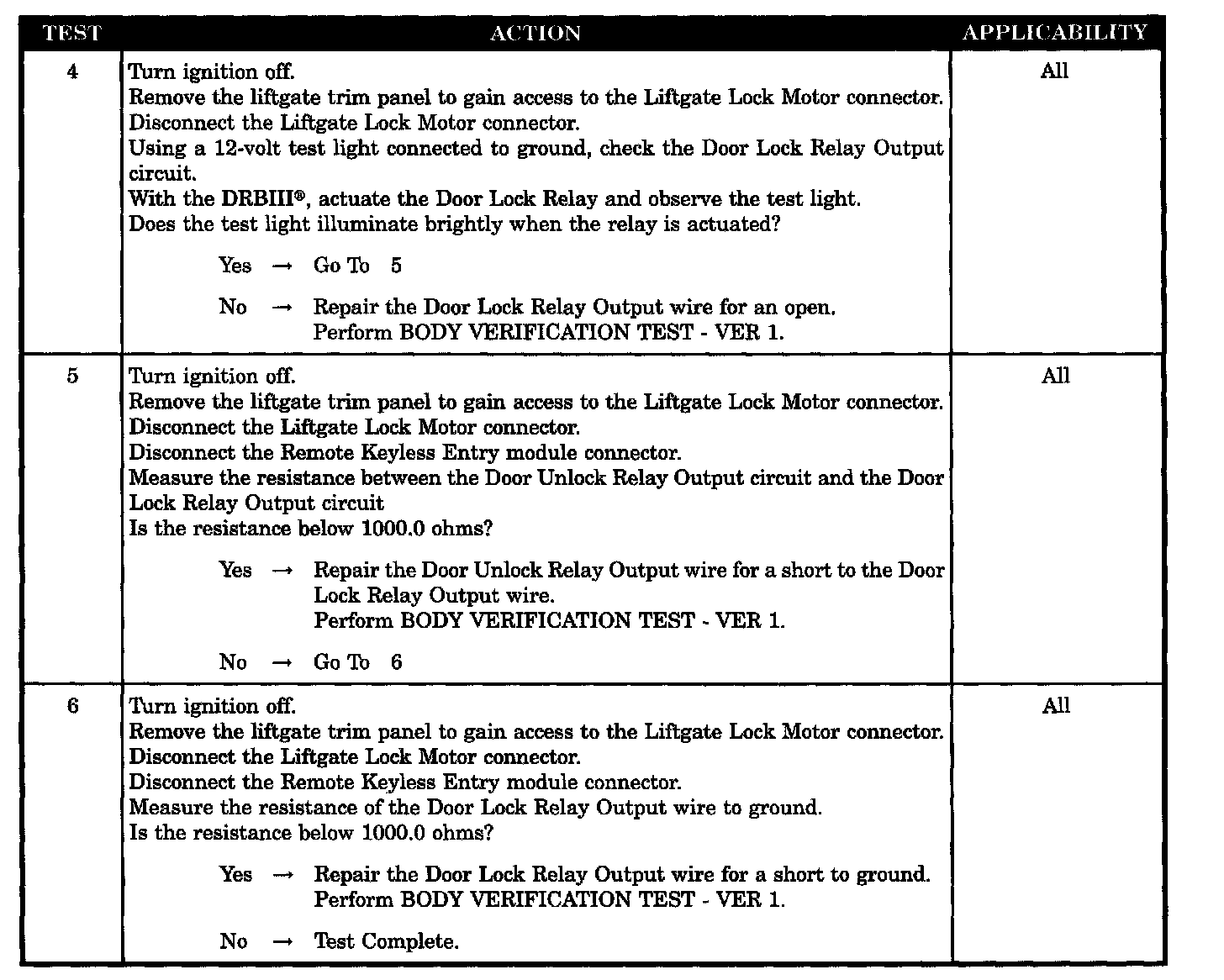

Test 4 - 6:
SYMPTOM LIFTGATE LOCK MOTOR FAILS TO LOCK OR UNLOCK
POSSIBLE CAUSES -
Liftgate lock motor
-
Door unlock relay output wire open
-
Door unlock relay output wire short to ground
-
Door lock relay output wire open
-
Door unlock relay output short to
door lock relay output
-
Door lock relay output wire short to ground
