Exhaust Manifold

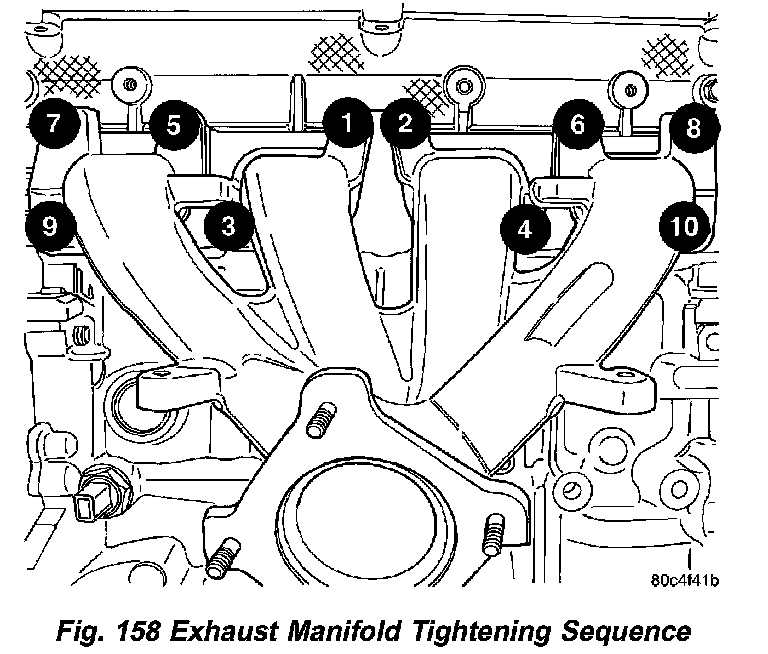

1. Tighten fasteners, starting at center and progressing outward in both directions to 23 Nm (200 in. lbs.).

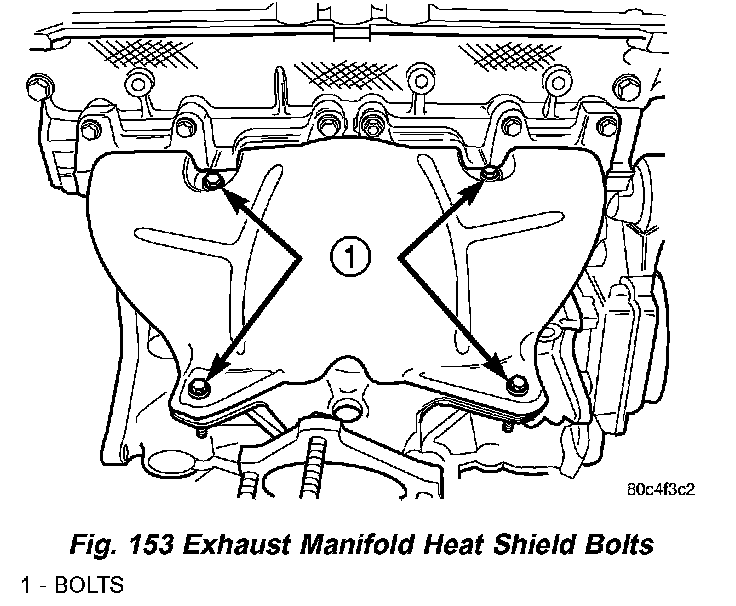

2. Tighten exhaust manifold heat shield bolts to 12 Nm (105 in. lbs.).
