Panel - CHMSL Cover

PANEL - CHMSL COVER

REMOVAL

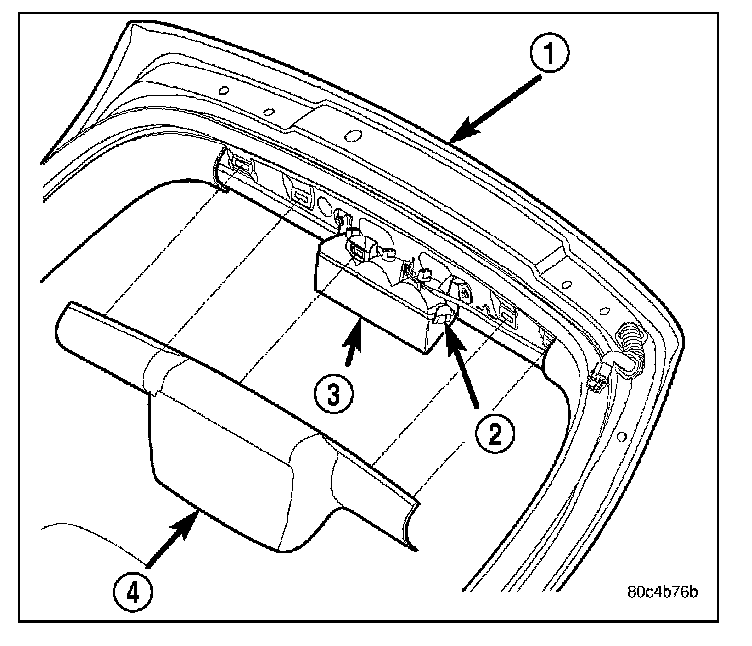

1. To access the CHMSL (3), disengage the snap retainers (2) that secure the CHMSL cover panel (4) to the liftgate (1) using a trim stick C-4755 or equivalent flat bladed tool.
2. Remove the CHMSL cover panel from the vehicle.

INSTALLATION




1. Position the CHMSL cover panel (4) over the CHMSL (3) on the inside of the liftgate (1).
2. Engage the snap retainers (2) that secure the CHMSL cover panel to the liftgate. Start at the center of the cover panel and work outward using the palm of your hand to fully engage the retainers to the liftgate.
